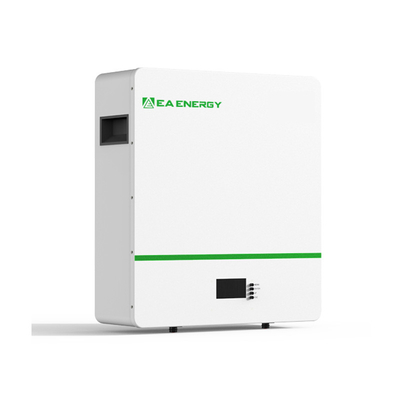

Wall Mounted 100Ah 48V Home Battery , 5KW Backup Home Storage Battery

Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 48V 100Ah
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 650*400*170mm 1pcs / carton GW: 45kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 1000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage 51.2V Capacity 100Ah
Diameter 650*400*170mm Model Wall Mounted Home Battery
Impedance <160mΩ Cycle Life >5000 Cycles
Standard Discharge Current Constant Current 1C Standard Charge Current Constant Current 1C
Cell Type 3.2V Battery Cells Certifications CE /UL/UN38.3/ MSDS
High Light

100Ah 48V Home Battery


Wall Mounted 48V Home Battery


5Kw Home Storage Battery

Leave a Message
Product Description

48V 100Ah Wall Mounted Home Battery 5Kw Home Storage Backup Battery

5kw Wall Mounted Home Battery details :

Nominal Voltage:51.2V -16S
Nominal Capacity: 102 AH
Nominal energy: 5.22 kWh
Operation voltage range:40.0V-58.4V
Standard charge current:20A
Max. Continuous charge current:100A
Standard discharge current:20A
Max. Continuous discharge current:100A
Temperature sensor protection:65℃
Charging temperature: 0~45℃
Working Temperature: -20~60℃
Over-current Fuse: 120A
Cycle life: 6000 times(80%DOD )
Communication: RS485/RS232/CAN
Box Size:650*400*170mm
Weight (KGS): 47.5KGS±0.5KGS
5kw Wall Mounted Home Battery Specifications :



Battery Type
Rated Capacity
Rated Voltage
Battery cell
Square / Cube / Prismatic / Prismary / Pouch 3.2V 100AH 102Ah 105Ah Li ion battery LiFePO4 Lithium iron phosphate battery
Configuration (*S*P)
Disharge Cut-off Protect Voltage
Charge Cut-off Protect Voltage
Max. Charge Current
Max. Discharge Current
Communication Port
CAN, RS485, RS232
Compitable Inverter Brand
DEYE, Luxpower, Megarevo, SMA, Growatt, Solax, Solis,Sungrow, Sofar, Voltronic, Goodwe, Must off-grid or hybrid inverter etc.
Max. 15 units in Parallels to get 76kwh.
Cycle life
6000-8000 times
L*W*H (mm)
Net Weight (KG)
Natural cooling
Mounting options
Wall mount
Discharge Temperature (℃)
Charge Temperature (℃)
0℃ ~+45℃
Storage Conditions
–20°C to 30°C (–4°F to 86°F)
Up to 95% RH, non-condensing
State of Energy (SoE): 25% initial
Maximum Elevation
3000 m (9843 ft)



5kw Wall Mounted Home Battery Description :

5kw EA ENERGY Wall Mounted Home Battery Storage System Description :

EA ENERGY V1 5kWh Lithium home Battery Storage System
The system provides 5 kilowatt-hours of reliable lithium battery storage and can be stacked with up to 5-10 additional home battery in parallel to create huge wall-mounted energy storage banks. It's designed for easy connection with other solar and storage system components (communication ports now include a universal connector).


Our home battery keeps improvements (larger wiring panel, integrated lift handles, and swappable vented/solid housing plates) while adding ETL Certification to UL 1973 and closed-loop communication with Sol-Ark and Schneider XW Pro inverters.


Featuring RS232 and RS485 communication capabilities, our home backup battery can easily communicate with any compatible devices, ensuring seamless integration with your solar or wind power system. The high-capacity 100Ah rating provides ample power to keep your home running during an outage or peak energy demand periods


You can connect this 5kW battery to your own solar panels or to the grid through an inverter to create a home energy storage system. This system can provide electricity backup during power shortages and help save on energy expenses.

5kw Wall Mounted Home Battery Storage System Features:

High-capacity, safe LiFePO4 battery
Wall-mounted, all-in-one design
Integrated WiFi communications
6,000+ cycles (@80% depth of discharge)
NO maintenance requirements
Advanced high/low temperature cycle performance
Intelligent LED/LCD display
Includes battery, mounting brackets and screws, and communications cables
5-year Extended Charge Rate Warranty or 10-year Extended Life Warranty


Matched Hybrid and OFF grid Inverter:
SMA, Studer, Victron, Schneider, Growatt, Sofar,Sol-Ark, Deye, Sungrow,Solis, Solax Goodwe,Voltronics,Sorotech, SRNE, and etc

5kw Wall Mounted Home Battery Products Details :
Wall Mounted 100Ah 48V Home Battery , 5KW Backup Home Storage Battery 0Wall Mounted 100Ah 48V Home Battery , 5KW Backup Home Storage Battery 1
5kw Wall Mounted Home Battery Applications :


This 5kw home battery can be applied in various settings, such as:

Remote cabins or vacation homes without access to the power grid
Off-grid homes or communities seeking energy independence
Urban homes looking to reduce their reliance on the power grid and save money on electricity bills

Also It can be used to power small homes, cabins, boats, and RVs, among other applications.

Wall Mounted 100Ah 48V Home Battery , 5KW Backup Home Storage Battery 2
