48V 102Ah Home Battery Storage System 5Kw Wall Mount Battery

Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 48V 102Ah
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 480*170*650mm 1pcs / carton GW: 45kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 1000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage 51.2V Capacity 102Ah
Model Wall Mounted Home Battery Cycle Life >6000 Cycles
Diameter 480*170*650MM ±1mm (L*W*T) Impedance <100mΩ
Standard Discharge Current Constant Current 1C Standard Charge Current Constant Current 1C
Cell Type 3.2V LiFePO4 Battery Cells Certifications CE /UL/UN38.3/ MSDS
High Light

48V 102Ah Home Battery Storage System


5Kw Home Battery Storage System


48V 102Ah Wall Mount Battery

Leave a Message
Product Description

48V 102Ah Home Battery Storage System 5Kw Wall Mount Battery


48V 102Ah Home Battery Storage 5Kw Wall Mount Battery With Display Screen

5Kw Wall Mount Battery details :
Nominal Voltage:51.2V -16S
Nominal Capacity: 102AH
Nominal energy: 5 kWh
Operation voltage range:40.0V-57.6V
Standard charge current: 20.4A
Max. Continuous charge current:102A
Standard discharge current: 20.4A
Max. Continuous discharge current:102A
Temperature sensor protection: 65℃
Charging temperature: 0~45℃
Working Temperature: -20~60℃
Over-current Fuse: 120A
Cycle life: 6000 times(80%DOD )
Communication: RS485/RS232/CAN
Box Size:480*170*650±1mm (L*W*T)
Weight (KGS): 45 ±0.5KGS
5Kw Wall Mount Battery Specifications :



Battery Type
Rated Capacity
Rated Voltage
Battery cell
Square / Cube / Prismatic / Prismary / Pouch 3.2V 200AH 205Ah 196Ah Li ion battery LiFePO4 Lithium iron phosphate battery
Configuration (*S*P)
Disharge Cut-off Protect Voltage
Charge Cut-off Protect Voltage
Max. Charge Current
Max. Discharge Current
Communication Port
CAN, RS485, RS232
Compitable Inverter Brand
DEYE, Luxpower, Megarevo, SMA, Growatt, Solax, Solis,Sungrow, Sofar, Voltronic, Goodwe, Must off-grid or hybrid inverter etc.
Max. 15 units in Parallels to get 160kwh.
Cycle life
6000-8000 times
L*W*H (mm)
Net Weight (KG)
Natural cooling
Mounting options
Wall mount
Discharge Temperature (℃)
Charge Temperature (℃)
0℃ ~+45℃
Storage Conditions
–20°C to 30°C (–4°F to 86°F)
Up to 95% RH, non-condensing
State of Energy (SoE): 25% initial
Maximum Elevation
3000 m (9843 ft)



5Kw Wall Mount Battery Description :

EA ENERGY 5kWh Lithium Battery Storage System


1. Friendly Environment Battery : LiFePO4
2. Calender life: 10 years
3. Superior “Usable” Capacity
4. Extended Cycle Life
5. Low self discharge
6. Fast & Efficient Charging
7. Very Little Wasted Energy
8. NO maintenance requirements
9. Size & Weight Advantages
10. In parallel: Max. 15 uits
Matched Hybrid and OFF grid Inverter:
SMA, Studer, Victron, Schneider, Growatt, Sofar,Sol-Ark, Deye, Sungrow,Solis, Solax Goodwe,Voltronics,Sorotech, SRNE, and etc


5Kw Wall Mount Battery Features:


Solar panels make more electricity during the middle of the day than they do at any other time.
The middle of the day also happens to be when homes use the least amount of electricity. Because of this, your solar panels will produce a lot of electricity in the afternoon that you won’t need.


Solar powerwall batteries are able to store that extra solar energy so you can use it later on. This lets you power your home on clean renewable energy from your solar panels, even when they aren’t producing electricity.
What’s great about installing a solar powerwall battery is that it allows you to be less reliant on the grid while ensuring you have access to reliable backup power when there’s a power outage.


5Kw Wall Mount Battery Products Details :

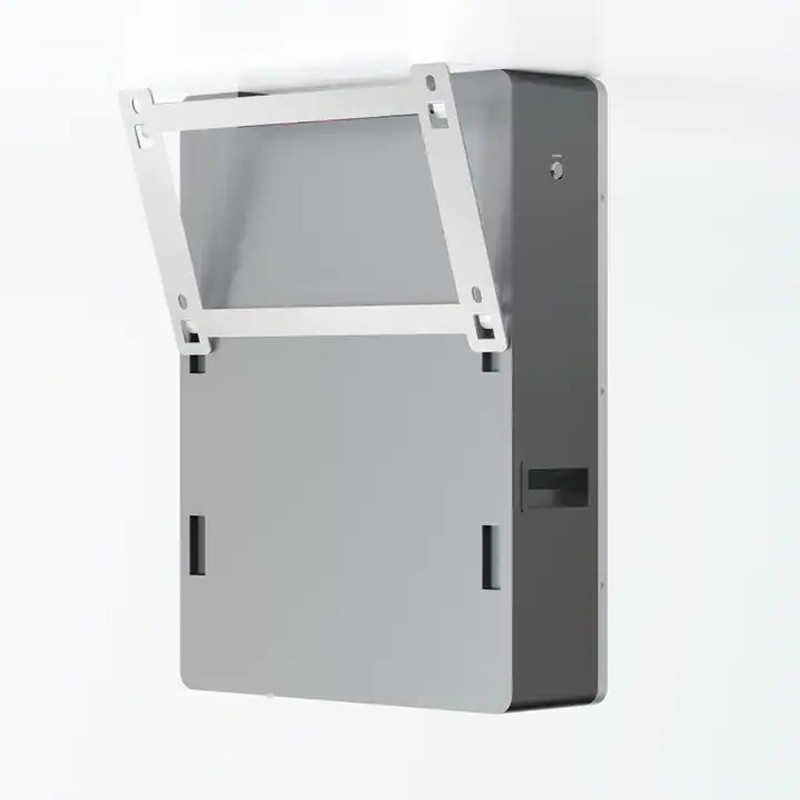

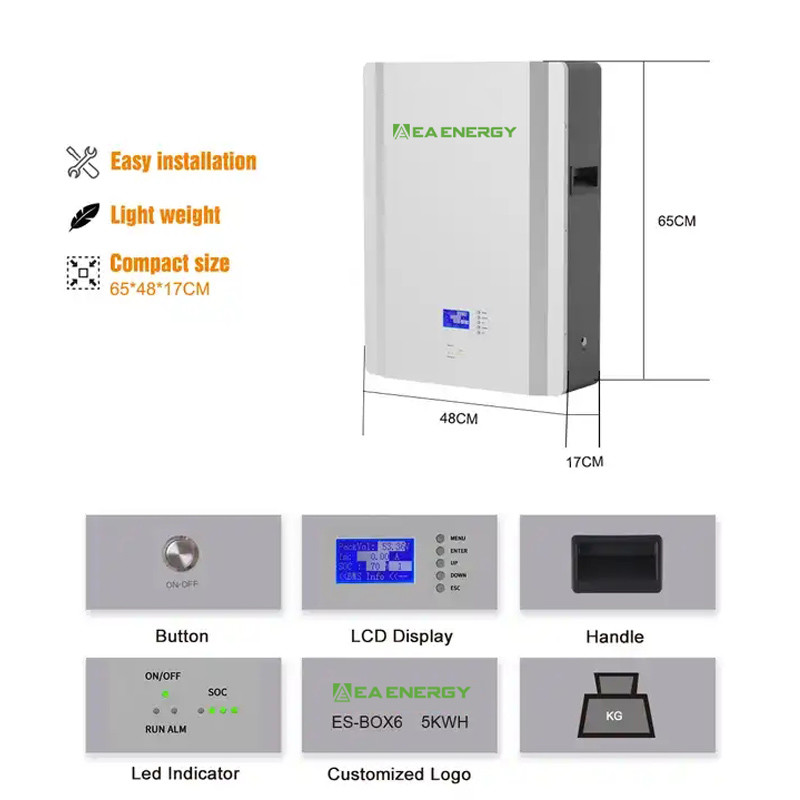

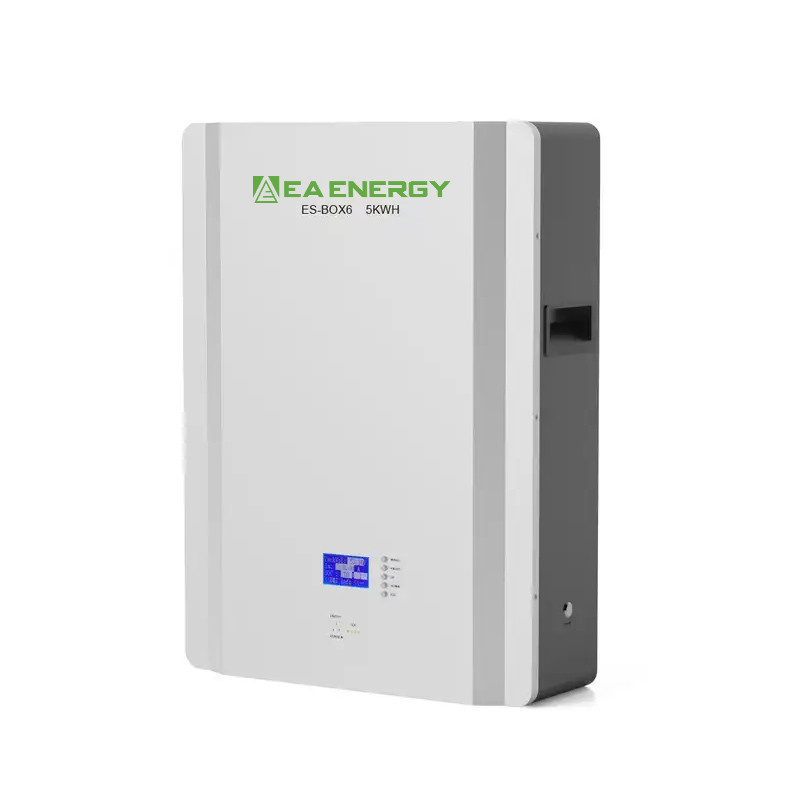

48V 102Ah Home Battery Storage System 5Kw Wall Mount Battery 048V 102Ah Home Battery Storage System 5Kw Wall Mount Battery 1
5Kw Wall Mount Battery Applications :

Application scenarios are mostly in power shortage areas, such as villas, hotels, stores, hospitals, schools. Multi-use energy range: 10KWH-100KWH, the inverter is mostly off-grid, can be multiple parallel kind.

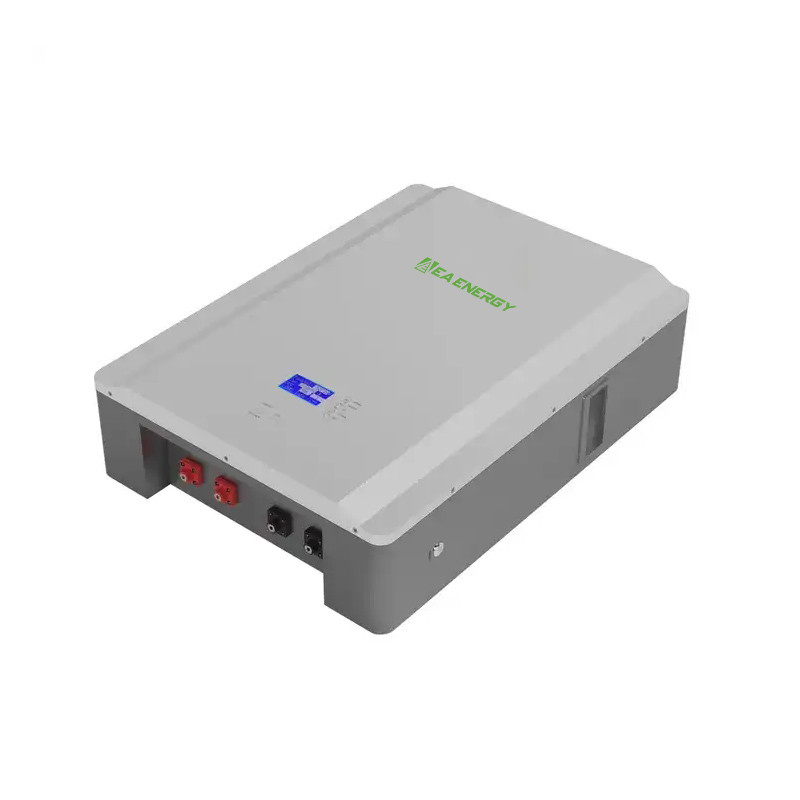

48V 102Ah Home Battery Storage System 5Kw Wall Mount Battery 2
