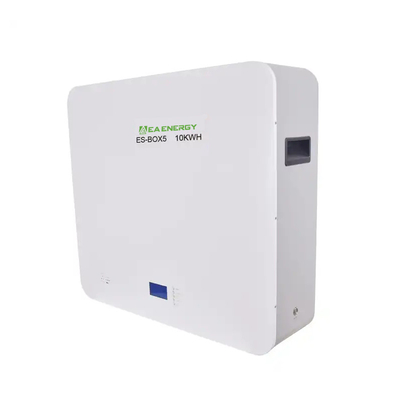

48V 10kW Residential Battery Storage Systems , 200Ah Household Battery Backup System

  • 48V 10kW Residential Battery Storage Systems , 200Ah Household Battery Backup System
  • 48V 10kW Residential Battery Storage Systems , 200Ah Household Battery Backup System
  • 48V 10kW Residential Battery Storage Systems , 200Ah Household Battery Backup System
  • 48V 10kW Residential Battery Storage Systems , 200Ah Household Battery Backup System
  • 48V 10kW Residential Battery Storage Systems , 200Ah Household Battery Backup System
Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 48V 10kW Residential Battery Storage Systems
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 1.8 CBM / 4carton / GW: 430kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 1000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model 10kW Residential Battery Storage Systems Solar Panels 550W 6pcs
Inverter 5kw Inverter Capacity 200Ah LiFePO4 Battery
Voltage 51.2V Cycle Life >6000 Cycles
Cell Type 3.2V LiFePO4 Battery Cells Standard Discharge Current Constant Current 1C
Standard Charge Current Constant Current 1C Certifications CE /UL/UN38.3/ MSDS
High Light

MSDS Residential Battery Storage Systems

,

10kW Residential Battery Storage Systems

,

200Ah Household Battery Backup System
Leave a Message
Product Description

48V 10kW Residential Battery Storage Systems 200Ah Household Battery Backup System


Residential Battery Storage Systems details :

1. Diameter*Height : 1.6CBM / 4carton / GW: 220kg
2. Nominal Voltage : 51.2V
3. Nominal Capacity : 200Ah
4. Cycle life : 6000 cycles
5. Standard charging ways : CC / CV
6. With 5kw Off-Grid Inverter
7. BMS inside ,CE , UL , UN38.3 , MSDS compliant
8. Warrenty: 10 Years

Residential Battery Storage Systems Specifications :



Item
Part
Specification
Quantity
Remarks
1
Solar panel
Mono 550W
6pcs
connection method:16 strings
2
Bracket


1set
Aluminum Alloy
3
Inverter built-in controller
5K-48V-80A
1set
1. AC Input voltage range: 170VAC-280VAC.
2. AC Output voltage: 230VAC.
3. Pure sine wave, high frequency output.
4. Max PV Power: 5000W.
5. Max PV Voltage : 500VDC.
4
Lithium Battery
48V-200AH
1pcs
1 parallels
Total release power:5KWH
5
Connector

2pairs

6
PV cables (solar panel to Inverter)
6mm2
60m

If the client wants longer cables, the price needs to be confirmed again.
7
BVR Cables(Inverter to DC Breaker)
35mm2
2m
2pcs

8
BVR Cables(Battery to DC Breaker)
25mm2
2m
4pcs

9
DC Breaker
2P 125A
1pc

10
AC Breaker
2P 32A
1pc




Residential Battery Storage Systems Description :



the residential battery storage systems combination of a 51.2v 200ah lithium iron phosphate battery, 6pcs 550w solar panels, and a 5kw inverter is suitable for your home's energy consumption of approximately 10~15 kwh per day.



connect the six 550w solar panels in series to produce a total output of 3300w.


install one 5kw inverter to convert dc energy produced by the panels to ac energy that can be used to power your home or business.
connect the inverter to the 51.2v 200ah lithium iron phosphate battery as a backup power source.


install charge controllers to regulate the amount of energy being charged into the battery.



with this residential battery storage systems, you can generate your own electricity, giving you independence from the grid in case of power outages or emergencies.


lithium iron phosphate batteries are known for their durability and low maintenance requirements, making them a cost-effective choice for long-term use.


Residential Battery Storage Systems Details :

48V 10kW Residential Battery Storage Systems , 200Ah Household Battery Backup System 0

Residential Battery Storage Systems Applications :



This solar home energy storage system can be applied in various settings, such as:

Remote cabins or vacation homes without access to the power grid
Off-grid homes or communities seeking energy independence
Urban homes looking to reduce their reliance on the power grid and save money on electricity bills

Also It can be used to power small homes, cabins, boats, and RVs, among other applications.


48V 10kW Residential Battery Storage Systems , 200Ah Household Battery Backup System 1
