3.2V 4000mAh 26700 LiFePO4 Battery Cells For Solar Power Backup System
Place of Origin | CHINA |
---|---|
Brand Name | EA ENERGY |
Certification | CE MSDS UN38.3 |
Model Number | 26700 4000mAh |
Minimum Order Quantity | 1PCS |
Price | Negotiable |
Packaging Details | 27*27*15cm 200pcs / carton GW:14kg |
Delivery Time | 1-5 Work days |
Payment Terms | T/T, Western Union, MoneyGram, T/T, D/P |
Supply Ability | 100000pcs Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xVoltage | 3.2V | Capacity | 4000mAh 12.8Wh |
---|---|---|---|
Diameter | 26.3±0.2mm*70±0.2mm | Cycle Life | >5000 Cycles |
Model | 26700 | Standard Discharge Current | Constant Current 1C |
Standard Charge Current | Constant Current 1C | Cell Type | LiFePO4 Battery |
Impedance | <1mΩ | Certifications | CE /UL/UN38.3/ MSDS |
High Light | 26700 LiFePO4 Battery Cells,3.2V 4000mAh LiFePO4 Battery Cells,3.2V 4000mAh 26700 Battery Cells |

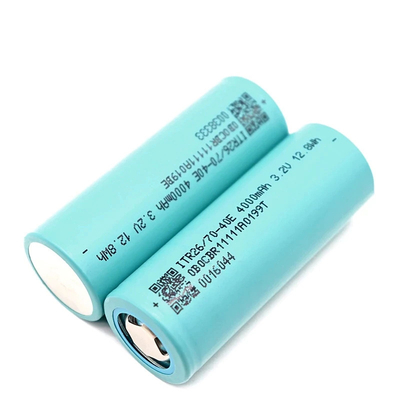

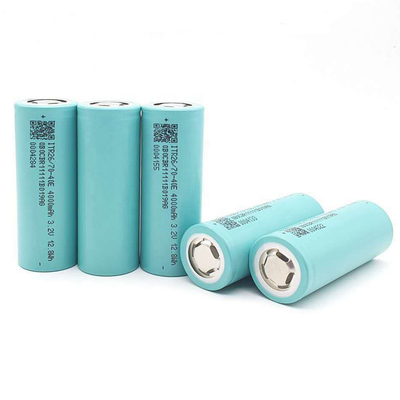

3.2V 4000mAh 26700 LiFePO4 Battery Cells For Solar Power Backup System
3.2v 4000mAh Li Iron Battery 26700 LiFePO4 Battery Cells For Solar Panels , Solar Power , Backup System
LiFePO4 Battery Cell Quick details:
1. Diameter*Height : 26*70mm (LiFePO4 26700 size)
2. Nominal Voltage : 3.2V
3. Nominal Capacity : 4000 mAh 12.8Wh
4. Cycle life : 5000 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion LiFePO4 battery cell
7. CE , UL , UN38.3 , MSDS compliant
26700 Battery Cell Description:
EA Energy LiFePO4 battery use Automotive Grade LiFePO4 Cells with higher energy density, more stable performance and greater power.
Unlike the Lead Acid batteries, lithium iron phosphate lifepo4 battery has higher energy density and has longer service life
Smart Built-in BMS Protection:
BMS (Battery Management System) is like human brain to balance the voltage between battery cells in order to protect against over-discharge, short circuit, overcharge, overheating and overloading.
The battery uses imported original big brand ion batteries, with a small internal resistance, big capacity, cycle times and more, no memory effect, etc; internal circuit for multiple protection design, can prevent over charge, over discharge, over current; production process quality inspection and monitoring the use of computers to ensure superior battery performance.
the voltage is stable, far superior to ternary polymer batteries and lead acid batteries.
90% of the energy of the iron phosphate battery is concentrated in a small area of 3-3.2v, and the discharge characteristics are very stable.
Under normal condition use, li ion deep cycle battery provides the service life of 3000 - 7000 cycles while only 300 - 500 cycles for Lead Acid battery
lithium iron phosphate is strictly Safety tests do
All battery are UL listed to ensure quality
LiFePO4 deep cycle battery can be used in many places, such as travel trailer,boat,car audio,fish finder,camper van,solar panels,solar power, backup system,server rack,off grid application.
We can also customize any size and function you need.Such as 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah etc..
LiFePO4 Battery Cell Specifications :
NO | Items | Specification | Remarks | |
1 | Nominal Capacity | 4000mAh | 0.2C 5A Discharge | |
0.2C 5A Discharge | ||||
2 | Nominal Voltage/shipping voltage | 3.2V/3.15-3.25V | Voltage | |
3 | Discharge Cut-off Voltage | 2.0V | 0.2C 5A Discharge | |
0.2C 5A Discharge | ||||
4 | Charge Limited Voltage | 3.65±0.03V | 0℃~45℃ | |
5 | Standard Charge Current | 1C A | 0℃~45℃ | |
6 | Standard Discharge Current | 1C A | -20℃~ +60℃ | |
7 | Rapid Charge Current | 1C A | 10℃~45℃ | |
8 | Rapid Discharge Current | 1C A | -20℃~ +60℃ | |
9 | Max. Charge Current | 3C A | ||
Max Pulse Current | 3C | |||
10 | Internal Impedance | ≤1mΩ | AC 1kHz condition | |
At AC 1kHz | ||||
11 | Weight | About 85.0g | Weight 85±2g | |
12 | Storage Temperature Range | ≤1 month | -20~ 45℃ | Factory Voltage 3.3~3.45V |
≤3 months | 0℃~ +30℃ | Ex-factory Voltage3.3~3.45V | ||
≤12 months | 20±5℃ |
LiFePO4 Battery Cell Other 26650 26700 cells :
Part No |
Nominal Voltage |
Rated Capacity |
Internal Resistance |
Discharge Rate |
Dimension(mm) |
Weight(g) |
|
Diameter | Height | ||||||
EA-LFP26650-3.2V-2500mAh | 3.2V | 2500mAh | <10 m Ω | 20C | 26.3±0.1 | 65.2±0.2 | 87 |
EA-LFP26650-3.2V-3000mAh | 3.2V | 3000mAh | <10 m Ω | 10C | 26.3±0.1 | 65.2±0.2 | 85 |
EA-LFP26650-3.2V-3200mAh | 3.2V | 3200mAh | <25 m Ω | 3C | 26.3±0.1 | 65.2±0.2 | 85 |
EA-LFP26650-3.2V-3300mAh | 3.2V | 3300mAh | <25 m Ω | 3C | 26.3±0.1 | 65.2±0.2 | 85 |
EA-LFP26650-3.2V-3400mAh | 3.2V | 3400mAh | <25 m Ω | 3C | 26.3±0.1 | 65.2±0.2 | 85 |
EA-LFP26650-3.2V-3600mAh | 3.2V | 3600mAh | <25 m Ω | 3C | 26.3±0.1 | 65.2±0.2 | 85 |
EA-LFP26650-3.2V-3800mAh | 3.2V | 3800mAh | <25 m Ω | 3C | 26.3±0.1 | 65.2±0.2 | 87 |
EA-LFP26650-3.2V-4000mAh | 3.2V | 4000mAh | <25 m Ω | 3C | 26.3±0.1 | 65.2±0.2 | 88 |
LiFePO4 Battery Cell Products Details :
LiFePO4 Battery Cell Applications:
26650 Battery cells Perfect for Wireless camera, surveillance cameras, wireless infrared detector, car LCD TV, portable DVD, personal treatment system, PDA personal data assistant, personal communications systems, walkie-talkies, digital cameras, camcorders, video cameras, Bluetooth devices, CD players, MD players, MP3 players, smart cards, aviation model LED lights and other fields can be used with LiFePO4 batteries.
