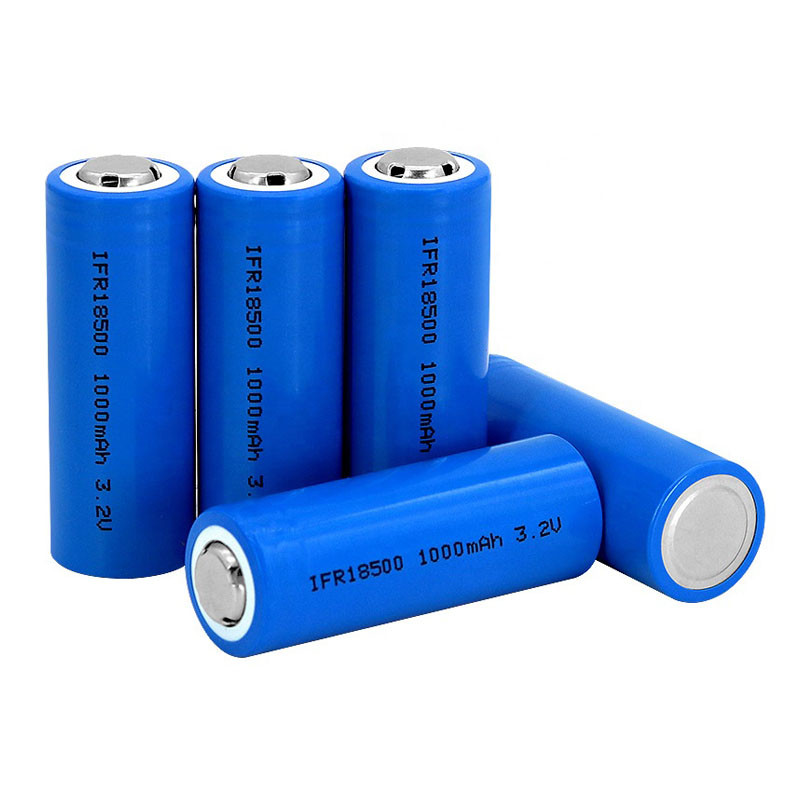

3.2v 1000mAh AA 18500 LFP Battery Cell 3.2Wh Lithium Iron Phosphate

  • 3.2v 1000mAh AA 18500 LFP Battery Cell 3.2Wh Lithium Iron Phosphate
  • 3.2v 1000mAh AA 18500 LFP Battery Cell 3.2Wh Lithium Iron Phosphate
  • 3.2v 1000mAh AA 18500 LFP Battery Cell 3.2Wh Lithium Iron Phosphate
Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number LiFePO4 18500 Battery
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 18*18*10cm 200pcs / carton GW:3kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 1000mAh 3.2Wh Cycle Life >2000 Cycles
Impedance ＜15mΩ Model 18500 LFP Battery Cell
Diameter 18±0.2mm*50±0.2mm Voltage 3.2V
Cell Type LiFePO4 Battery Standard Discharge Current Constant Current 0.2C
Certifications CE /UL/UN38.3/ MSDS Standard Charge Current Constant Current 0.2C
Highlight

AA 18500 LFP Battery Cell

,

3.2v 1000mAh LFP Battery Cell

,

3.2Wh AA Battery Cell
Leave a Message
Product Description

3.2v 1000mAh AA 18500 LFP Battery Cell 3.2Wh Lithium Iron Phosphate



3.2v 1000mAh 18500 LFP Battery Cell , Lithium Iron Phosphate Solar AA Battery Cell



Quick details :



1. Diameter*Height : 18mm * 50mm (LiFePO4 18500 size)

2. Nominal Voltage : 3.2V

3. Nominal Capacity : 1000 mAh 3.2Wh

4. Cycle life : 2000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion LiFePO4 battery cell

7. CE , UL , UN38.3 , MSDS compliant





Description :



18500 batteries have a wide range of applications , and lithium iron phosphate batteries have more advantages than ordinary lithium batteries, especially in deep cycle , small current , longer use time products



Long battery life – With 2,000 charging and discharging battery life , rechargeable AA batteries outlast 4 to 5 times more than regular battery life. It can power your solar lights up to 5 years, no more changing your solar light battery every 1-2 years. Generate more long-term savings when replacing regular solar garden light batteries.



EA Energy LiFePO4 battery use Automotive Grade LiFePO4 Cells with higher energy density, more stable performance and greater power. Highest-level safety based on UL Testing Certificate for the cell inside.



We can customize 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah lithium batteries. We can also customize any size and function you need.







Specifications :



NO Items Specification Remarks
1 Nominal Capacity 1000mAh 0.2C  Discharge
0.2C  Discharge
2 Nominal Voltage/shipping voltage 3.2V/3.15-3.25V Voltage
3 Discharge Cut-off Voltage 2.0V 0.2C  Discharge
0.2C  Discharge
4 Charge Limited Voltage 3.25±0.03V 0℃～45℃
5 Standard Charge Current 0.2C  0℃～45℃
6 Standard Discharge Current 0.2C  -20℃~ +60℃
7 Rapid Charge Current 0.5C  10℃～45℃
8 Rapid Discharge Current 0.5C  -20℃~ +60℃
9 Max. Charge Current 1C 1000mAh
Max Pulse Current 3C
10 Internal Impedance ≤15mΩ AC 1kHz condition
At AC 1kHz
11 Weight About 60.0g Weight 60±2g

12 Storage Temperature Range ≤1 month -20~ 45℃ Factory Voltage 3.2~3.25V
≤3 months 0℃~ +30℃ Ex-factory Voltage3.2~3.25V
≤12 months 20±5℃ 　





Products Details :



3.2v 1000mAh AA 18500 LFP Battery Cell 3.2Wh Lithium Iron Phosphate 0





Other battery cells :



3.2v 1000mAh AA 18500 LFP Battery Cell 3.2Wh Lithium Iron Phosphate 1





Applications:



EA Energy LiFePO4 battery Perfect for UPS power supply , distributed power station , grid peak shaving , energy storage market , power supply ,new energy automobile industry .

3.2v 1000mAh AA 18500 LFP Battery Cell 3.2Wh Lithium Iron Phosphate 2
