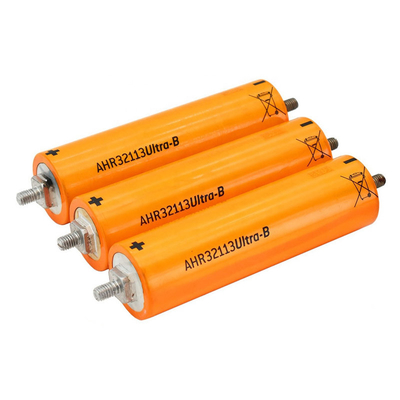

AHR32113 Rechargeable LFP Battery Lithium Cell High Discharge Rates

Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number AHR32113
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 32*12*7cm 200pcs / carton GW: 6kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage 3.2V Capacity 4000mAh
Standard Charge Current Constant Current 45C Model 32113
Diameter 32±0.2mm*113±0.2mm Standard Discharge Current Constant Current 30C~45C
Cycle Life >5000 Cycles Cell Type LiFePO4 Battery Cells
Impedance <10mΩ Certifications CE/IEC62133/MSDS/UN38.3
High Light

AHR32113 Rechargeable LFP Battery


AHR32113 LiFePO4 Ebike Battery


3.2V AHR32113 Prismatic Lithium Cells

Leave a Message
Product Description

AHR32113 Rechargeable LFP Battery Lithium Cell High Discharge Rates


High Discharge Rates Cell AHR32113Ultra-B 32113 Lifepo4 Battery 3.2v 4000mah 45c 35c 40c 30c


LiFePO4 Battery Cells details:


1. Diameter*Height : 32*113mm ( LiFePO4 32113 size )

2. Nominal Voltage : 3.2V

3. Nominal Capacity : 4000mAh 12.8Wh

4. Cycle life : 3000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion LiFePO4 battery cell

7. CE , UL , UN38.3 , MSDS compliant


Rechargeable LFP Battery Description:


EA Energy has 14 years of experience in lithium battery production!


Designed for HEV applications using our high power M1Ultra electrode design, A123's AHR32113 lthium iron phosphate cell is built to deliver high power and long life under the most demanding duty cycles. The AHR32113 delivers consistent power over a wide state of charge (SOC) range resulting in minimal battery pack oversizing and a low cost-per-watt.

More info: Item Technical Parameters Nominal capacity: 4000mAh


Nominal voltage: 3.3v


Battery resistance: ≤2.5mΩ


The maximum charging current:45C


Maximum charging voltage: 3.65±0.05V


The maximum discharge current (continuous): 40C


The maximum discharge current (instantaneous pulse): 30C


Discharge voltage: 2.0V


Size Φ32±1mm*H113±1mm


Weight: 300g


Cycle life: >3000 Operating


temperature: -10~45℃


Storage temperature Within a month: -20~40℃


Within 6 months -20~35℃


Battery Safety Warnings: Mishandling of the battery may cause heat, fire, damages, and deterioration in performance.


Easy to install,High capacity, long life and lasting performance.


uilt-in Safety System
Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. Built-in high temp cut off prevents charging over 122 °F (50 °C). Plus, Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults. This product fits for outdoor camping power and indoor easy installation.


Last 8 to 10 times longer than standard lead acid batteries. Our products have a 10 years service life and provide a five years warranty.


100% safe, nontoxic, renewable energy. LiFepo4 battery will not burn when overcharged, over discharged, over current or short circuit, and can withstand high temperatures without decomposition. Smart BMS inside can handle cell balancing, low & high voltage cutoff, short circuit protection and temperature protection. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged


We can also customize any size and function you need.Such as 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah etc..




LiFePO4 Battery Cells Specifications :


Item AHR32113 LiFePO4 battery cell
Model 32113
Dimension 32*113mm
Continuous discharging current 30C~45C
Peak discharging current 45C
Max charge current 45C
Certificate CE/IEC62133/MSDS/UN38.3
Cycle life 2000~3000 times
Lead time 3-5 days for samples
12-15 days for production


LiFePO4 Battery Cells Details:


AHR32113 Rechargeable LFP Battery Lithium Cell High Discharge Rates 0AHR32113 Rechargeable LFP Battery Lithium Cell High Discharge Rates 1


LiFePO4 Battery Cells Applications:


Perfect for EV, Fork Lift, E-Bike, Power tools, Garden tools, solar, High Drain Devices, DIY powerwalls, ebikes, EV, electric vehicles, car audio, ham radio...ect

AHR32113 Rechargeable LFP Battery Lithium Cell High Discharge Rates 2
