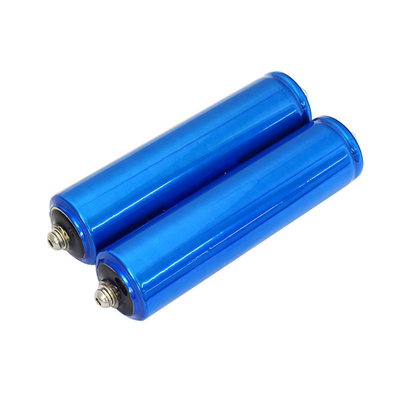

38120 10Ah Cylindrical LiFePO4 Battery Cells Constant Current 0.5C

38120 10Ah Cylindrical LiFePO4 Battery Cells Constant Current 0.5C

38120 10Ah Cylindrical LiFePO4 Battery Cells For DIY Powerwalls , Ebikes , EV , Electric Vehicles , Car Audio

38120 LiFePO4 Cells Quick details:

1. Diameter*Height : 38*120mm (LiFePO4 38120size)

2. Nominal Voltage : 3.2V

3. Nominal Capacity : 10Ah 32Wh

4. Cycle life : 5000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion LiFePO4 battery cell

7. CE , UL , UN38.3 , MSDS compliant

38120 10Ah Cylindrical LiFePO4 Battery Cells Specifications :

38120 10Ah Cylindrical LiFePO4 Battery Cells Description:

EA Energy has 14 years of experience in lithium battery production!

Super High Power cell Patent Technology: Horizontal Current Collection Technology, reduces current transport distance, reduce heat, uniform current distribution LiFePo4 battery cell

10Ah 3.2V 100A 2000 cycles -10C -- 45C

Easy Confirgulations Applications: EV, Fork Lift, E-Bike, Power tools, Garden tools, solar etc. With button up terminals

More info: Item Technical Parameters Nominal capacity: 10Ah(0.5c)

Nominal voltage: 3.2v

Battery resistance: ≤2.5mΩ

The maximum charging current:10C

Maximum charging voltage: 3.65±0.05V

The maximum discharge current (continuous): 15C

The maximum discharge current (instantaneous pulse): 30C(100v)

Discharge voltage: 2.0V

Size Φ38±1mm*H122±(H132±1mm)

Weight: 330g

Cycle life: >2000 Operating

temperature: -10~45℃

Storage temperature Within a month: -20~40℃

Within 6 months -20~35℃

Battery Safety Warnings: Mishandling of the battery may cause heat, fire, damages, and deterioration in performance.

The battery uses imported original big brand ion batteries, with a small internal resistance, big capacity, cycle times and more, no memory effect, etc; internal circuit for multiple protection design, can prevent over charge, over discharge, over current; production process quality inspection and monitoring the use of computers to ensure superior battery performance.

100% Protection -- Built-in Smart BMS to prevent overcharge, overdischarge, overcurrent and short circuit, and has excellent self-discharge performance. The internal battery cells came with the UL test certification. IP65 waterproof.

EA Energy LiFePO4 battery use A Grade 38120 Cells with higher energy density, more stable performance and greater power.

38120 and HP cells are authentic and brand new. These can be used for DIY powerwalls, ebikes, EV, electric vehicles, car audio, ham radio. They can be used for anything needing 12v, 24v, 36v, 48v and higher. They match lead acid, AGM and Gel cell battery voltages exactly. You can use them to power your car, RV, motorcycle etc. Anything a lead acid battery can do so can these.

38120 10Ah Cylindrical LiFePO4 Battery Cells Cells Details:

Cylindrical LiFePO4 Rechargeable Battery Cells Applications:

Perfect for EV, Fork Lift, E-Bike, Power tools, Garden tools, solar, High Drain Devices, DIY powerwalls, ebikes, EV, electric vehicles, car audio, ham radio...ect
