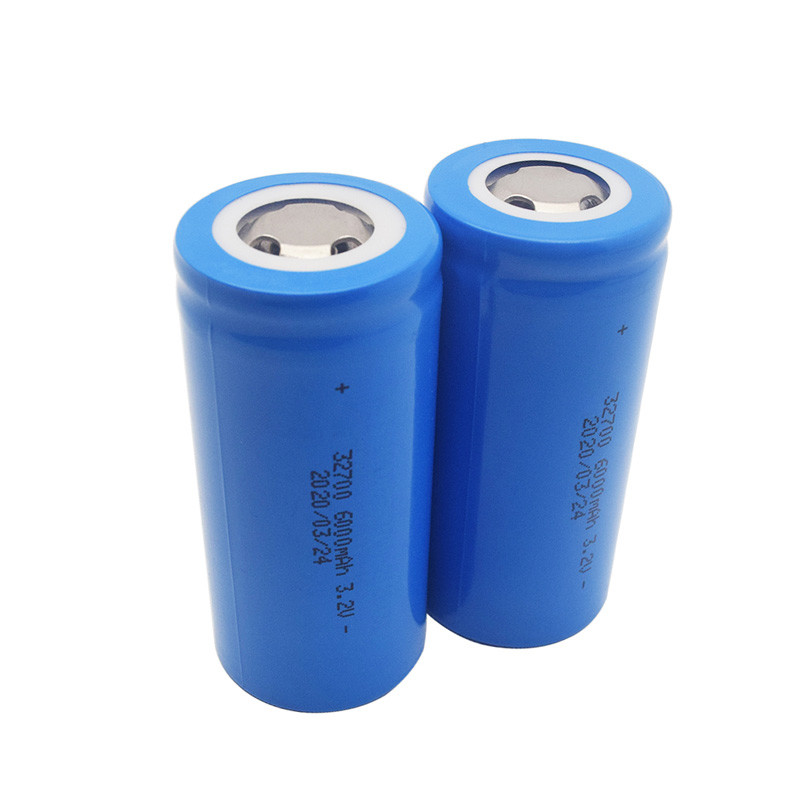

3.2v 6Ah Cylindrical Lifepo4 Cells For Golf Cart Electric Wheelchair

Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 32700 6Ah
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 32*32*15cm 200pcs / carton GW:14kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 6Ah 19.2Wh Cell Type LiFePO4 Battery
Diameter 32±0.2mm*70±0.2mm Model 32700
Cycle Life >5000 Cycles Voltage 3.2V
Standard Discharge Current Constant Current 0.2C Standard Charge Current Constant Current 0.5C
Impedance <10mΩ Certifications CE /UL/UN38.3/ MSDS
High Light

3.2v 6Ah Cylindrical Lifepo4 Cells

,

19.2Wh Cylindrical Lifepo4 Cells

,

3.2v 6Ah Lithium Phosphate Cell

Leave a Message
Product Description

3.2v 6Ah Cylindrical Lifepo4 Cells For Golf Cart Electric Wheelchair



3.2v 6Ah 32700 Cylindrical LiFePO4 Rechargeable Battery Cells For E-Bike Golf Cart Electric Wheelchair



LiFePO4 Battery Cell Quick details:



1. Diameter*Height : 32*70mm (LiFePO4 32700 size)

2. Nominal Voltage : 3.2V

3. Nominal Capacity : 6Ah 19.2Wh

4. Cycle life : 5000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion LiFePO4 battery cell

7. CE , UL , UN38.3 , MSDS compliant





Cylindrical LiFePO4 Rechargeable Battery Cells Description:



EA Energy has 14 years of experience in lithium battery production!



EA Energy LiFePO4 battery use Automotive Grade LiFePO4 Cells with higher energy density, more stable performance and greater power.



LiFePO4 battery provides 2500 - 7000 cycles and a 10 year lifetime cycle use compared to 200 - 1000 cycles & a 3 years lifetime in typical Lead Acid batteries. Our lithium batteries can be fully charged without risk and maintain the capacity with low self-discharge rate, you can use the battery as you want even though put it aside for a long-time storage.



ISO 9001, UL, and ROHS Certifications for every battery.


The battery uses imported original big brand ion batteries, with a small internal resistance, big capacity, cycle times and more, no memory effect, etc; internal circuit for multiple protection design, can prevent over charge, over discharge, over current; production process quality inspection and monitoring the use of computers to ensure superior battery performance.



We can also customize any size and function you need.Such as 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah etc..



Great for building DIY batteries! The screw/stud posts allow for an easy, quality build with no soldering. These cells are great for DIY robotics, ham radio, power wall, ebikes, and many other applications.





Cylindrical LiFePO4 Rechargeable Battery Cells Specifications :



NO Items Specification Remarks
1 Nominal Capacity 6Ah 0.2C 5A Discharge
0.2C 5A Discharge
2 Nominal Voltage/shipping voltage 3.2V/3.15-3.25V Voltage
3 Discharge Cut-off Voltage 2.0V 0.2C 5A Discharge
0.2C 5A Discharge
4 Charge Limited Voltage 3.65±0.03V 0℃~45℃
5 Standard Charge Current 0.2C 5A 0℃~45℃
6 Standard Discharge Current 0.2C 5A -20℃~ +60℃
7 Rapid Charge Current 0.5C 5A 10℃~45℃
8 Rapid Discharge Current 0.5C 5A -20℃~ +60℃
9 Max. Charge Current 1C 5A
Max Pulse Current 3C
10 Internal Impedance ≤15mΩ AC 1kHz condition
At AC 1kHz
11 Weight About 90.0g Weight 90±2g

12 Storage Temperature Range ≤1 month -20~ 45℃ Factory Voltage 3.3~3.45V
≤3 months 0℃~ +30℃ Ex-factory Voltage3.3~3.45V
≤12 months 20±5℃



Cylindrical LiFePO4 Rechargeable Battery Cells 26650 cells :





Part No



Nominal Voltage



Rated Capacity



Internal Resistance



Discharge Rate

Dimension(mm)



Weight(g)

Diameter Height
EA-LFP26650-3.2V-2500mAh 3.2V 2500mAh <10 m Ω 20C 26.3±0.1 65.2±0.2 87
EA-LFP26650-3.2V-3000mAh 3.2V 3000mAh <10 m Ω 10C 26.3±0.1 65.2±0.2 85
EA-LFP26650-3.2V-3200mAh 3.2V 3200mAh <25 m Ω 3C 26.3±0.1 65.2±0.2 85
EA-LFP26650-3.2V-3300mAh 3.2V 3300mAh <25 m Ω 3C 26.3±0.1 65.2±0.2 85
EA-LFP26650-3.2V-3400mAh 3.2V 3400mAh <25 m Ω 3C 26.3±0.1 65.2±0.2 85
EA-LFP26650-3.2V-3600mAh 3.2V 3600mAh <25 m Ω 3C 26.3±0.1 65.2±0.2 85
EA-LFP26650-3.2V-3800mAh 3.2V 3800mAh <25 m Ω 3C 26.3±0.1 65.2±0.2 87
EA-LFP26650-3.2V-4000mAh 3.2V 4000mAh <25 m Ω 3C 26.3±0.1 65.2±0.2 88

Cylindrical LiFePO4 Rechargeable Battery Cells Details:



3.2v 6Ah Cylindrical Lifepo4 Cells For Golf Cart Electric Wheelchair 0



Cylindrical LiFePO4 Rechargeable Battery Cells Applications:



Perfect for Wireless camera, surveillance cameras, wireless infrared detector, car LCD TV, portable DVD, personal treatment system, PDA personal data assistant, personal communications systems, walkie-talkies, digital cameras, camcorders, video cameras, Bluetooth devices, CD players, MD players, MP3 players, smart cards, aviation model LED lights and other fields can be used with LiFePO4 batteries.

3.2v 6Ah Cylindrical Lifepo4 Cells For Golf Cart Electric Wheelchair 1
