18650 Cell Rechargeable Lithium Ion Battery Pack 1000 Cycles Life

Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 10.8V 18650 5200mAh
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 30*40*10cm 10pcs / carton GW:15kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage 10.8V Capacity 5200mAh
Diameter 55mm*42mm*65mm Cycle Life >1000 Cycles
Cell Type 18650 Battery Packs Model Lithium Ion Battery Pack
Standard Charge Current Constant Current 1C Impedance <200mΩ
Standard Discharge Current Constant Current 1C Certifications CE / UL / UN38.3 / MSDS
High Light

10.8V 18650 Rechargeable Lithium Ion Battery Pack


5200mAh Lithium Ion Battery Packs


55mm*42mm*65mm 18650 Battery Packs

Leave a Message
Product Description

18650 Cell Rechargeable Lithium Ion Battery Pack 1000 Cycles Life


10.8V 5200mAh Rechargeable Lithium Ion Battery Pack Lithium Ion 18650 Battery Pack


Quick details :


1. Diameter*Height : 55 * 42 * 65(mm) (Lithium Ion 18650size 3S2P)

2. Nominal Voltage : 10.8V

3. Nominal Capacity : 5200mAh

4. Cycle life : 1000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion rechargeable battery cell 18650

7. CE , UL , UN38.3 , MSDS compliant


18650 Battery Pack Description :


Lithium Ion 10.8V 5200mAh 56.2Wh 18650 5 Cell Battery Pack

High Density Rechargeable Battery Pack - Heavy Weight Battery Pack - Not a Light Weight Cheap Battery Pack.

cell selection: Samsung, LG, Lishen, Roofer, and other 18650 cell suppliers have established good cooperative relations.


Service life: 1000 cycles or more, Assembly method: 1S with JST 2P connoctor, Charging time: 1.5-2 hours, Weight: 250g


This Light Weight and High Energy Density Battery Pack has a Higher Capacity than most other Rechargeable Battery Packs. An Installed IC Chip Pevents the Battery Pack from Over Charge and Over Discharge. It Helps Protect the Battery Chemistry Integrity and Prolongs Battery Life. Perfect for Projects and Devices that Requires a 11V-12V Battery Pack for Power


High Safety Performance: Equipped with intelligent circuit protection board, We have used BMS or PCB inside the battery pack to protect lithium ion battery for over-charge and over-discharge. with overcharge protection, overdischarge protection, short circuit protection, overvoltage protection, load protection, high temperature protection, etc.

Products through UL, CE, FCC, RoHS certificated.


We can customize 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah lithium batteries. We can also customize any size and function you need.



Specifications :


NO Items Specification Remarks
1 Nominal Capacity 5200mAh 1C  Discharge
1C  Discharge
2 Nominal Voltage/shipping voltage 10.8V Voltage
3 Discharge Cut-off Voltage 9.6V 1C Discharge
1C Discharge
4 Charge Limited Voltage 10.8~12.6V 0℃~45℃
5 Standard Charge Current 1 C5A 0℃~45℃
6 Standard Discharge Current 2 C5A -20℃~ +60℃
7 Rapid Charge Current 0.5C5A 10℃~45℃
8 Rapid Discharge Current 0.5C5A -20℃~ +60℃
9 Max. Charge Current 1 C5A
Max Pulse Current 1C
10 Internal Impedance ≤40mΩ AC 1kHz condition
At AC 1kHz
11 Weight About 250g Weight 250kg
12 Storage Temperature Range ≤1 month -20~ 45℃ Factory Voltage 10.8~12.6V
≤3 months 0℃~ +30℃ Ex-factory Voltage 10.8~12.6V
≤12 months 20±5℃



Products Details :

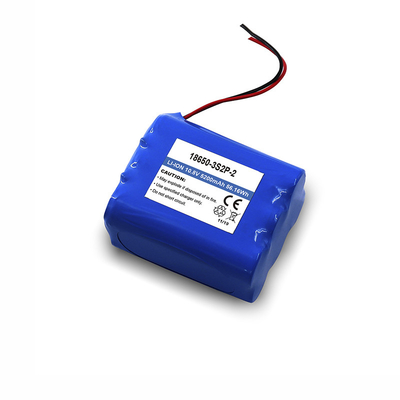

18650 Cell Rechargeable Lithium Ion Battery Pack 1000 Cycles Life 0


Applications :


Electric Bike Electric wheelchair
LED lamps, traffic signs, portable small appliances, electric tools, toys, robot etc
Emergency light,dive flashlight,Solar lawn lamp,LED light, lawn mower.
Mobile communication equipment , Scaner, Mapper
Power Tool, Wireless Machine, Portable Instrument, POS Machine, Alarm Monitor etc.

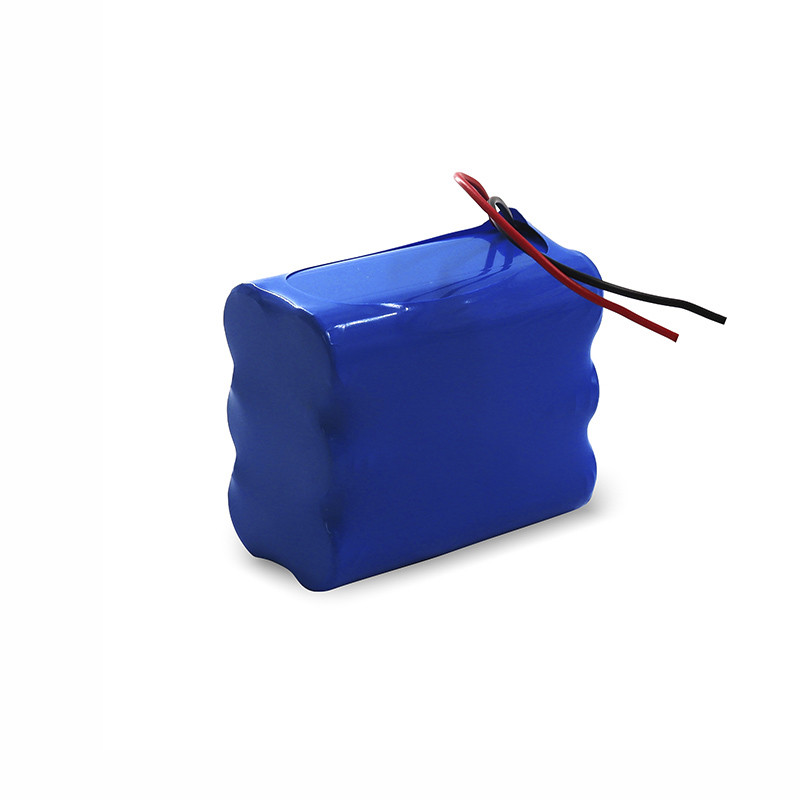

18650 Cell Rechargeable Lithium Ion Battery Pack 1000 Cycles Life 1
