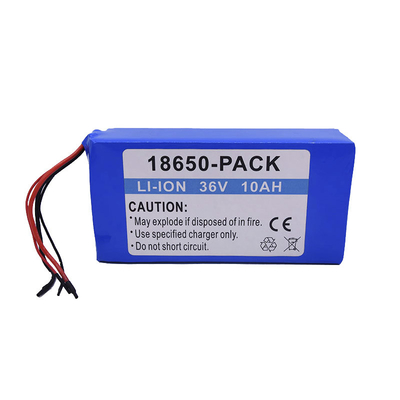

36V 10Ah Lithium Ion Battery Pack 10S4P 360Wh Constant Current 3C

Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 36V 18650 10Ah
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 30*40*10cm 10pcs / carton GW:15kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage 36V Capacity 10Ah
Cycle Life >1000 Cycles Diameter 158mm*82mm*72mm
Cell Type 18650 Battery Packs Model Lithium Ion Battery Pack For Ebike
Standard Charge Current Constant Current 3C Impedance <200mΩ
Standard Discharge Current Constant Current 3C Certifications CE /UL/UN38.3/ MSDS
High Light

36V 10Ah Lithium Ion Battery Pack


10S4P Lithium Ion Battery Pack


10S4P Ebike Battery Pack

Leave a Message
Product Description

36V 10Ah Lithium Ion Battery Pack 10S4P 360Wh Constant Current 3C


36V 10Ah Lithium Ion Battery Pack 18650 360Wh Ebike Battery Pack


Quick details :


1. Diameter*Height : 158*82*72(mm) (Lithium Ion 18650size 10S4P)

2. Nominal Voltage : 36V

3. Nominal Capacity : 10Ah

4. Cycle life : 1000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion rechargeable battery cell 18650

7. CE , UL , UN38.3 , MSDS compliant


Ebike Battery Pack Description :


36V 10AH lithium-ion battery.The size is only 7.59*2.75*2.75inch.Suitable for 360Wh motor.Max constant discharge current: 15A.The service life is more than 1000 times and 5 years .


36V 10AH Ebike Battery can compatible with electric scooter,ebike,electric motorcycle,electric tricycle,solar panel.In addition, If you are specialize in refitting ebike, the battery is very suitable.


Products through UL, CE, FCC, RoHS certificated.


Cell selection: Samsung, LG, Lishen, Roofer, and other 18650 cell suppliers have established good cooperative relations.


High power output, 1C continuous, 3C pulse for normal cells, Low self-discharge rate .


We have used BMS or PCB inside the battery pack to protect 36V lithium ion battery for over-charge and over-discharge.


Our experienced team utilizes proven technology and innovative engineering to design, assemble, and test rechargeable medical device batteries. We support high and low volume manufacturing for a diverse customer base that includes some of the most recognized companies in the world. Whatever the power requirements of your mobile or portable Equipment, we have the ideal batteries solution.



Specifications :


NO Items Specification Remarks
1 Nominal Capacity 10Ah 0.2C  Discharge
0.2C  Discharge
2 Nominal Voltage/shipping voltage 36V Voltage
3 Discharge Cut-off Voltage 27.5V 0.2C Discharge
0.2C Discharge
4 Charge Limited Voltage 27.5~36V 0℃~45℃
5 Standard Charge Current 1 C5A 0℃~45℃
6 Standard Discharge Current 2 C5A -20℃~ +60℃
7 Rapid Charge Current 0.5C5A 10℃~45℃
8 Rapid Discharge Current 0.5C5A -20℃~ +60℃
9 Max. Charge Current 1 C5A
Max Pulse Current 1C
10 Internal Impedance ≤40mΩ AC 1kHz condition
At AC 1kHz
11 Weight About 1.4Kg Weight 1.4kg
12 Storage Temperature Range ≤1 month -20~ 45℃ Factory Voltage 36~38V
≤3 months 0℃~ +30℃ Ex-factory Voltage36~38V
≤12 months 20±5℃



Products Details :

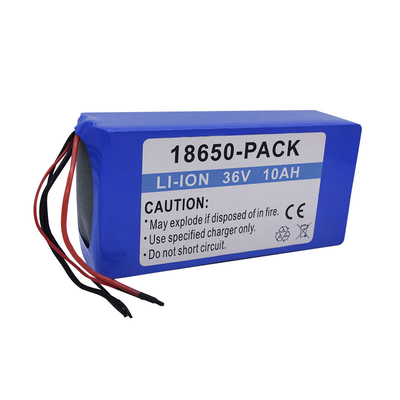

36V 10Ah Lithium Ion Battery Pack 10S4P 360Wh Constant Current 3C 0


Applications :


Electric Bike: Compatible with ANCHEER/VELOWAVE(Measurement is required)
Electric Scooter
Electric Motorcycle
Electric Tricycle
Solar Panels


36V 10Ah Lithium Ion Battery Pack 10S4P 360Wh Constant Current 3C 136V 10Ah Lithium Ion Battery Pack 10S4P 360Wh Constant Current 3C 2
