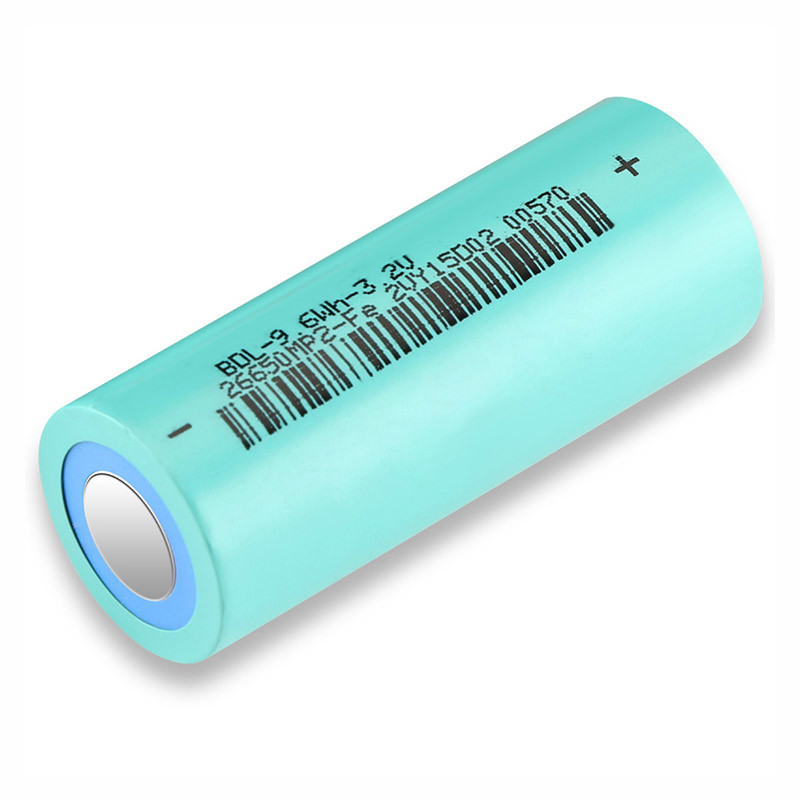

3.2v 3200mAh 26650 Lifepo4 Cylindrical Cells For Robots Solar UPS

  • 3.2v 3200mAh 26650 Lifepo4 Cylindrical Cells For Robots Solar UPS
  • 3.2v 3200mAh 26650 Lifepo4 Cylindrical Cells For Robots Solar UPS
  • 3.2v 3200mAh 26650 Lifepo4 Cylindrical Cells For Robots Solar UPS
Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 26650 3200mAh
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 27*27*15cm 200pcs / carton GW:14kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 3200mAh 9.6Wh Cycle Life >5000 Cycles
Impedance ＜15mΩ Voltage 3.2V
Diameter 26.3±0.2mm*65.3±0.2mm Standard Discharge Current Constant Current 1C
Cell Type LiFePO4 Battery Certifications CE /UL/UN38.3/ MSDS
Model 26650 Standard Charge Current Constant Current 0.5C
High Light

9.6Wh 26650 Lifepo4 Cylindrical Cells

,

3.2v 3200mAh Lifepo4 Cylindrical Cells

,

9.6Wh 26650 Solar UPS Cell
Leave a Message
Product Description

3.2v 3200mAh 26650 Lifepo4 Cylindrical Cells For Robots Solar UPS



3.2v 3200mAh 26650 LiFePO4 Battery Cell For Robots , Solar UPS , Solar Street Ledlights



Quick details:



1. Diameter*Height : 26*65mm (LiFePO4 26650 size)

2. Nominal Voltage : 3.2V

3. Nominal Capacity : 3200 mAh 9.6Wh

4. Cycle life : 5000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion LiFePO4 battery cell

7. CE , UL , UN38.3 , MSDS compliant



Solar UPS Cell Description:



EA Energy has 14 years of experience in lithium battery production!



EA Energy LiFePO4 battery use Automotive Grade LiFePO4 Cells with higher energy density, more stable performance and greater power.



Highest-level safety based on UL Testing Certificate for the cell inside.



26650 batteries, also known as 1/3 AAA batteries, are rechargeable lithium-ion cells. A 26650 battery is able to generate high voltages while also being safe and efficient, making them ideal batteries for high-powered LED flashlights. Available as both protected and unprotected, 26650 batteries are the perfect companion for high drain devices and are produced by some of the most trusted lithium-ion battery companies.



These are 3200mAh cells. LiFePO4 is a superior chemistry with over 2000 cycles to 80% capacity, compare that to normal lithium-ion and lithium-polymer 300-800 cycles. These also make a perfect 12v lead acid replacements when you connect 4 in series.




100% safe, nontoxic, renewable energy. LiFepo4 battery will not burn when overcharged, over discharged, over current or short circuit, and can withstand high temperatures without decomposition. Smart BMS inside can handle cell balancing, low & high voltage cutoff, short circuit protection and temperature protection. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged



We can also customize any size and function you need.Such as 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah etc..





Specifications :



NO Items Specification Remarks
1 Nominal Capacity 3200mAh 0.2C 5A Discharge
0.2C 5A Discharge
2 Nominal Voltage/shipping voltage 3.2V/3.15-3.25V Voltage
3 Discharge Cut-off Voltage 2.0V 0.2C 5A Discharge
0.2C 5A Discharge
4 Charge Limited Voltage 3.65±0.03V 0℃～45℃
5 Standard Charge Current 0.2C 5A 0℃～45℃
6 Standard Discharge Current 0.2C 5A -20℃~ +60℃
7 Rapid Charge Current 0.5C 5A 10℃～45℃
8 Rapid Discharge Current 0.5C 5A -20℃~ +60℃
9 Max. Charge Current 1C 5A
Max Pulse Current 3C
10 Internal Impedance ≤15mΩ AC 1kHz condition
At AC 1kHz
11 Weight About 80.0g Weight 80±2g

12 Storage Temperature Range ≤1 month -20~ 45℃ Factory Voltage 3.3~3.45V
≤3 months 0℃~ +30℃ Ex-factory Voltage3.3~3.45V
≤12 months 20±5℃ 　



Other 26650 cells :





Part No



Nominal Voltage



Rated Capacity



Internal Resistance



Discharge Rate

 Dimension(mm)



Weight(g)
Diameter Height
EA-LFP26650-3.2V-2500mAh 3.2V 2500mAh <10 m Ω 20C 26.3±0.1 65.2±0.2 87
EA-LFP26650-3.2V-3000mAh 3.2V 3000mAh <10 m Ω 10C 26.3±0.1 65.2±0.2 85
EA-LFP26650-3.2V-3200mAh 3.2V 3200mAh <25 m Ω 3C 26.3±0.1 65.2±0.2 85
EA-LFP26650-3.2V-3300mAh 3.2V 3300mAh <25 m Ω 3C 26.3±0.1 65.2±0.2 85
EA-LFP26650-3.2V-3400mAh 3.2V 3400mAh <25 m Ω 3C 26.3±0.1 65.2±0.2 85
EA-LFP26650-3.2V-3600mAh 3.2V 3600mAh <25 m Ω 3C 26.3±0.1 65.2±0.2 85
EA-LFP26650-3.2V-3800mAh 3.2V 3800mAh <25 m Ω 3C 26.3±0.1 65.2±0.2 87
EA-LFP26650-3.2V-4000mAh 3.2V 4000mAh <25 m Ω 3C 26.3±0.1 65.2±0.2 88

Products Details :



3.2v 3200mAh 26650 Lifepo4 Cylindrical Cells For Robots Solar UPS 0



Applications:



LiFePO4 battery use Automotive Grade LiFePO4 Cells with higher energy density, more stable performance and greater power. Like used for RV , solar campers ,solar home, motor homes, off-grid applications

3.2v 3200mAh 26650 Lifepo4 Cylindrical Cells For Robots Solar UPS 1
