36V 4.8Ah 172.8Wh Electric Scooter Battery Pack Customized Impedance

Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 25.2V 18650 10S2P 4.8Ah
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 30*40*10cm 10pcs / carton GW:15kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 4.8Ah Cycle Life >300 Cycles
Diameter 135mm*60mm*80mm Cell Type 18650 Battery Packs
Voltage 36V Model Lithium Ion Battery Pack For Electric Scooter
Standard Charge Current Constant Current 0.2C Impedance Customized
Standard Discharge Current Constant Current 0.2C Certifications CE /UL/UN38.3/ MSDS
High Light

172.8Wh Electric Scooter Battery Pack

,

36V 4.8Ah Electric Scooter Battery Pack

,

172.8Wh 36V Lithium Battery Pack

Leave a Message
Product Description

36V 4.8Ah 172.8Wh Electric Scooter Battery Pack Customized Impedance



36V Electric Scooter Battery Pack 4.8Ah 172.8Wh 18650 7S4P Battery Pack With Connector



Quick details:



1. Diameter*Height : 135mm*60mm*80mm (Lithium Ion 18650size 10S2P)

2. Nominal Voltage : 25V

3. Nominal Capacity : 10.4Ah

4. Cycle life : 300 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion rechargeable battery cell 18650

7. CE , UL , UN38.3 , MSDS compliant



36V Lithium Battery Pack​ Description:



36V 4.8Ah lithium-ion battery.The size is only 5.4*2.37*3.15inch.Suitable for 173Wh motor.Max constant discharge current: 4.8A.The service life is more than 1000 times.



36V 4.8Ah battery pack Built-in 10A BMS protection board, which can effectively prevent battery overcharge, extend battery life, monitor battery. Make sure you and the battery security.



smart battery management system (smart-BMS)
The smart-BMS closely monitors the battery status with multiple protection mechanisms to ensure the battery durability



Products through UL, CE, FCC, RoHS certificated.

ebike lithium battery built-in BMS Protective Board fuse and battery cell fixactor, prevent over charge, and short circuit, prevent over charge, and short circuit, prevent over charge, and short circuit

Brand New grade A batteries cell. Fit for 100W to 1000W e-bike/scooter







Specifications:



NO Items Specification Remarks
1 Nominal Capacity 4.8Ah 0.2C  Discharge
0.2C  Discharge
2 Nominal Voltage/shipping voltage 36V Voltage
3 Discharge Cut-off Voltage 27.5V 0.2C Discharge
0.2C Discharge
4 Charge Limited Voltage 36~42V 0℃~45℃
5 Standard Charge Current 1 C5A 0℃~45℃
6 Standard Discharge Current 2 C5A -20℃~ +60℃
7 Rapid Charge Current 0.2C5A 10℃~45℃
8 Rapid Discharge Current 0.2C5A -20℃~ +60℃
9 Max. Charge Current 1 C5A
Max Pulse Current 3C
10 Internal Impedance ≤20mΩ AC 1kHz condition
At AC 1kHz
11 Weight About 1Kg Weight 1kg

12 Storage Temperature Range ≤1 month -20~ 45℃ Factory Voltage 36~42V
≤3 months 0℃~ +30℃ Ex-factory Voltage36~42V
≤12 months 20±5℃





Products Details :

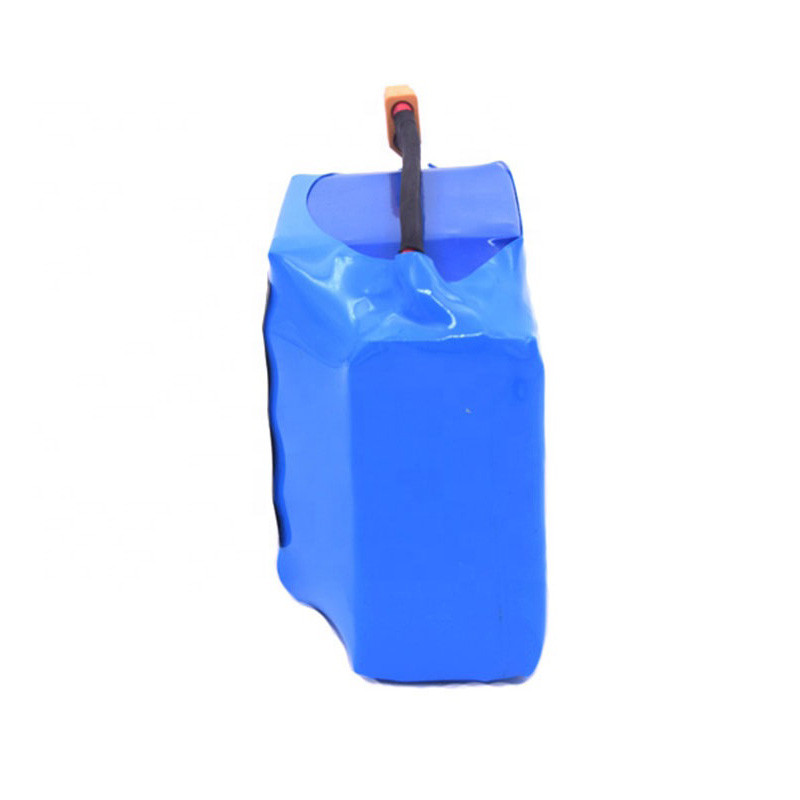

36V 4.8Ah 172.8Wh Electric Scooter Battery Pack Customized Impedance 036V 4.8Ah 172.8Wh Electric Scooter Battery Pack Customized Impedance 1



Applications:



Electric Bike: Compatible with ANCHEER/VELOWAVE(Measurement is required)
Electric Scooter
Electric Motorcycle
Electric Tricycle
Solar Panels



36V 4.8Ah 172.8Wh Electric Scooter Battery Pack Customized Impedance 2
