36V 8.8Ah 10S4P Electric Bicycle Battery Pack Lithium Ion 18650 Cell

  • 36V 8.8Ah 10S4P Electric Bicycle Battery Pack Lithium Ion 18650 Cell
  • 36V 8.8Ah 10S4P Electric Bicycle Battery Pack Lithium Ion 18650 Cell
Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 36V 18650 10S3P 8.8Ah
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 30*40*10cm 10pcs / carton GW:15kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 36V Capacity 8800mAh
Diameter 158mm*82mm*72mm Cell Type 18650 Battery Packs
Model Lithium Ion Battery Pack For Electric Bicycle Standard Charge Current Constant Current 3C
Impedance ＜40mΩ Standard Discharge Current Constant Current 3C
Cycle Life >1000 Cycles Certifications CE /UL/UN38.3/ MSDS
High Light

10S4P Electric Bicycle Battery Pack

,

10S4P 18650 Lithium Ion Battery

,

36V 8.8Ah Electric Bicycle Battery Pack
Leave a Message
Product Description

36V 8.8Ah 10S4P Electric Bicycle Battery Pack Lithium Ion 18650 Cell



36V 8.8Ah 10S4P 18650 Lithium Ion Electric Bicycle Battery Pack With BMS



18650 Lithium Ion Battery Quick details:



1. Diameter*Height : 158*82*72(mm) (Lithium Ion 18650size 10S4P)

2. Nominal Voltage : 36V

3. Nominal Capacity : 8.8Ah

4. Cycle life : 1000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion rechargeable battery cell 18650

7. CE , UL , UN38.3 , MSDS compliant



Electric Bicycle Battery Pack​ Description:



36V 8.8AH lithium-ion battery.The size is only 7.59*2.75*2.75inch.Suitable for 288Wh motor.Max constant discharge current: 15A.The service life is more than 1000 times.



Premium Battery Chip

36V 8.8AH ebike battery adopts 10 series and 4 parallel method. Our ebike battery is automobile-grade battery and has a long service life. Each cell has a cycle life of more than 1000 times, which is more than twice that of ordinary batteries. High Performance, high safety, inexplosive, incombustible; Non-toxic, pollution-free, through the RoHS certification. The battery chip has no memory effect and does not have to empty the remaining charge before charging, which is convenient to use.



With the characteristic of long cycle life, light battery weight, high safety performance, green environmental protection, It's a much better battery than a lead-acid battery.The outer layer is made of waterproof PVC material, which is insulation, anti-corrosion and wear-resistant. The inner layer has the advantages of low melting point, waterproof sealing and strong adhesion.



EA ENERGY Lithium ion battery is designed to be leak-proof and hermetically sealed. Designs a modular BMS based on the horizon lithium batteries. It has higher energy density, more stable performance. Our battery has more than 1000 times deep cycles and 5 years service life.



Specifications:



NO Items Specification Remarks
1 Nominal Capacity 8800mAh 3C  Discharge
3C  Discharge
2 Nominal Voltage/shipping voltage 36V Voltage
3 Discharge Cut-off Voltage 30V 3C 5A Discharge
3C 5A Discharge
4 Charge Limited Voltage 21.6±0.03V 0℃～45℃
5 Standard Charge Current 1 C5A 0℃～45℃
6 Standard Discharge Current 2 C5A -20℃~ +60℃
7 Rapid Charge Current 0.5C5A 10℃～45℃
8 Rapid Discharge Current 0.5C5A -20℃~ +60℃
9 Max. Charge Current 1 C5A
Max Pulse Current 3C
10 Internal Impedance ≤40mΩ AC 1kHz condition
At AC 1kHz
11 Weight About 1.4Kg Weight 1.4kg

12 Storage Temperature Range ≤1 month -20~ 45℃ Factory Voltage 36~38V
≤3 months 0℃~ +30℃ Ex-factory Voltage36~38V
≤12 months 20±5℃ 　





Products Details :

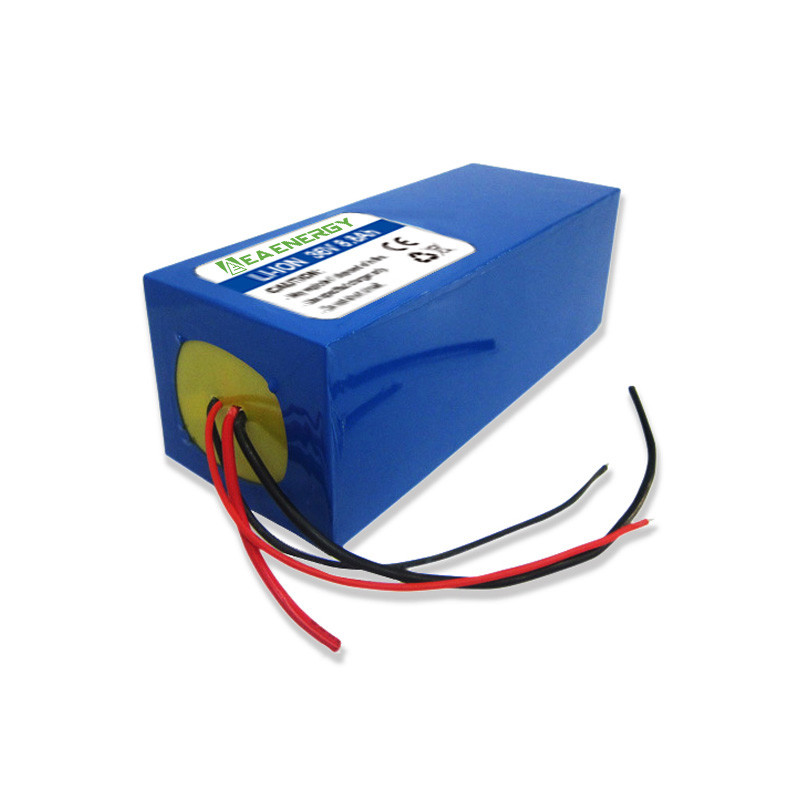

36V 8.8Ah 10S4P Electric Bicycle Battery Pack Lithium Ion 18650 Cell 0



Applications:



Electric Bike: Compatible with ANCHEER/VELOWAVE(Measurement is required)
Electric Scooter
Electric Motorcycle
Electric Tricycle
Solar Panels

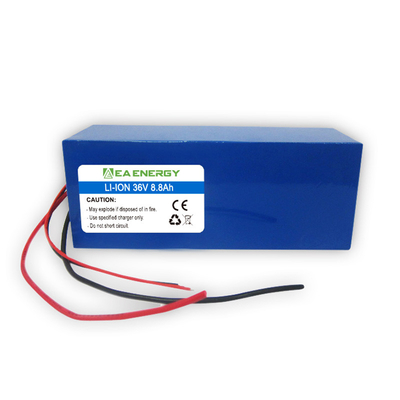

36V 8.8Ah 10S4P Electric Bicycle Battery Pack Lithium Ion 18650 Cell 136V 8.8Ah 10S4P Electric Bicycle Battery Pack Lithium Ion 18650 Cell 2
