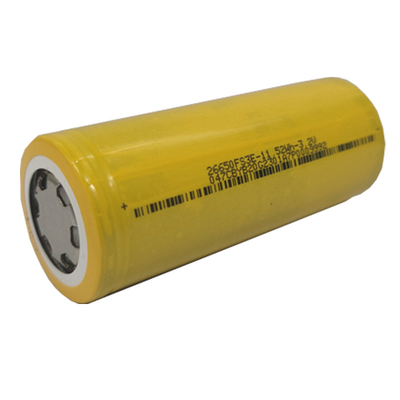

3600mAh 11.52Wh 3.2V Lithium Rechargeable Battery 26650 Lifep04 Cells
Place of Origin | CHINA |
---|---|
Brand Name | EA ENERGY |
Certification | CE MSDS UN38.3 UL |
Model Number | 26650 3600mAh |
Minimum Order Quantity | 10PCS |
Price | Negotiable |
Packaging Details | 27*27*15cm 200pcs / carton GW:13kg |
Delivery Time | 1-5 Work days |
Payment Terms | T/T, Western Union, MoneyGram, T/T, D/P |
Supply Ability | 100000pcs Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDiameter | 26.3±0.2mm*65.3±0.2mm | Model | 26650 3600mAh 3.2V |
---|---|---|---|
Voltage | 3.2V | Cell Type | 26650 LiFePO4 Battery |
Cycle Life | >4000 Cycles | Impedance | <19mΩ |
Standard Charge Current | Constant Current 1C | Standard Discharge Current | Constant Current 1C |
Capacity | 3600mAh 11.52Wh | Certifications | CE /UL/UN38.3/ MSDS |
High Light | 11.52Wh 3.2V Lithium Rechargeable Battery,3600mAh 11.52Wh Lifep04 Lithium Battery,11.52Wh 3.2V Lithium Lifepo4 Cells |
3600mAh 11.52Wh 3.2V Lithium Rechargeable Battery 26650 Lifep04 Cells
Lithium Ion LiFePO4 Batteries 26650 3600mAh 11.52Wh 3.2V Lithium Rechargeable Battery Cells
Quick details:
1. Diameter*Height: 26*65mm (LiFePO4 26650 size)
2. Nominal Voltage: 3.2V
3. Nominal Capacity: 3600 mAh 10.6Wh
4. Cycle life: 4000 cycles
5. Standard charging ways: CC / CV
6. Li-ion / Lithium Ion rechargeable battery cell
7. CE , UL ,UN38.3 , MSDS compliant
Lithium Rechargeable Battery Description:
EA Energy has 14 years of experience in lithium battery production!
Good consistency, low self-discharge
Super safe lithium iron phosphate(LiFePO4 )chemistry
With short-circuit production function, safe and reliable
High discharge rate Fast charging and low self-discharge rate Light weight
High working voltage for single battery cells
Power cells for high-rate applications and energy cells for cyclic applications
Construct custom battery designs by connecting two or more cells in parallel and / or series
Our Lifepo4 batteries can be connected in parallels and in series for larger capacity and voltage. Max connection in series: Up to 4 identical batteries for up to 48V connecting in series. Connection in parallels: it can connect multiple batteries, suggest no more than 4pcs in parallel. Allow to be extended up to 4 in series and 4 in parallel (Max 4S4P) to get more capacity (Max 24Ah) and higher voltage (24V, 36V, 48V). Other installation methods: 4S2P, 2S2P, 3S2P, etc.
Specifications:
NO | Items | Specification | Remarks | |
1 | Nominal Capacity | 3600mAh | 0.2C 5A Discharge | |
0.2C 5A Discharge | ||||
2 | Nominal Voltage/shipping voltage | 3.2V/3.15-3.25V | Voltage | |
3 | Discharge Cut-off Voltage | 2.0V | 0.2C 5A Discharge | |
0.2C 5A Discharge | ||||
4 | Charge Limited Voltage | 3.65±0.03V | 0℃~45℃ | |
5 | Standard Charge Current | 0.2C 5A | 0℃~45℃ | |
6 | Standard Discharge Current | 0.2C 5A | -20℃~ +60℃ | |
7 | Rapid Charge Current | 0.5C 5A | 10℃~45℃ | |
8 | Rapid Discharge Current | 0.5C 5A | -20℃~ +60℃ | |
9 | Max. Charge Current | 1C 5A | ||
Max Pulse Current | 3C | |||
10 | Internal Impedance | ≤16mΩ | AC 1kHz condition | |
At AC 1kHz | ||||
11 | Weight | About 89.0g | Weight 89±2g | |
12 | Storage Temperature Range | ≤1 month | -20~ 45℃ | Factory Voltage 3.3~3.45V |
≤3 months | 0℃~ +30℃ | Ex-factory Voltage3.3~3.45V | ||
≤12 months | 20±5℃ |
Products Details :
Applications:
Power bank, microphone, radio microphone, game pad, laser pointer, flashlight, headlight, LED light, camera, toy, remote control toy, mini fan, portable printer, printer emergency light, inter phone, DVD portable computer, laptop, instrument, audio equipment, model antenna, and other electronic devices that require battery cells.
