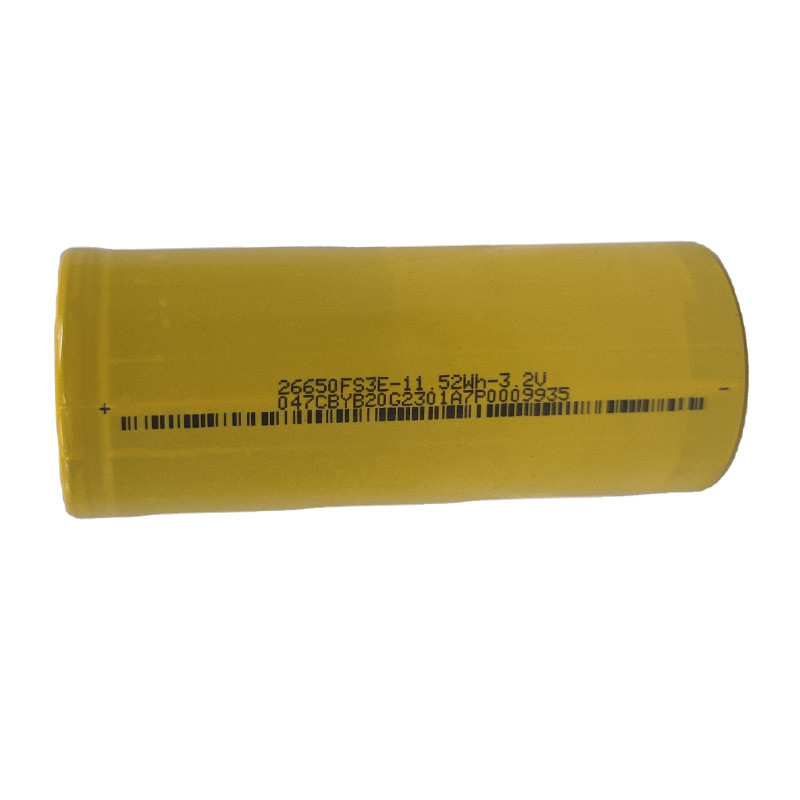

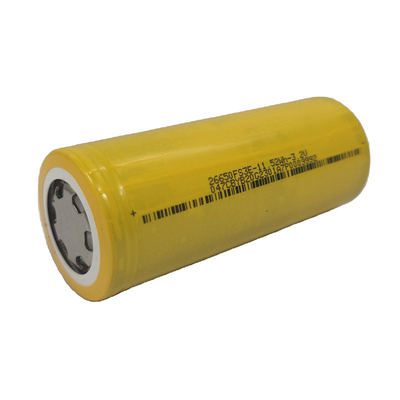

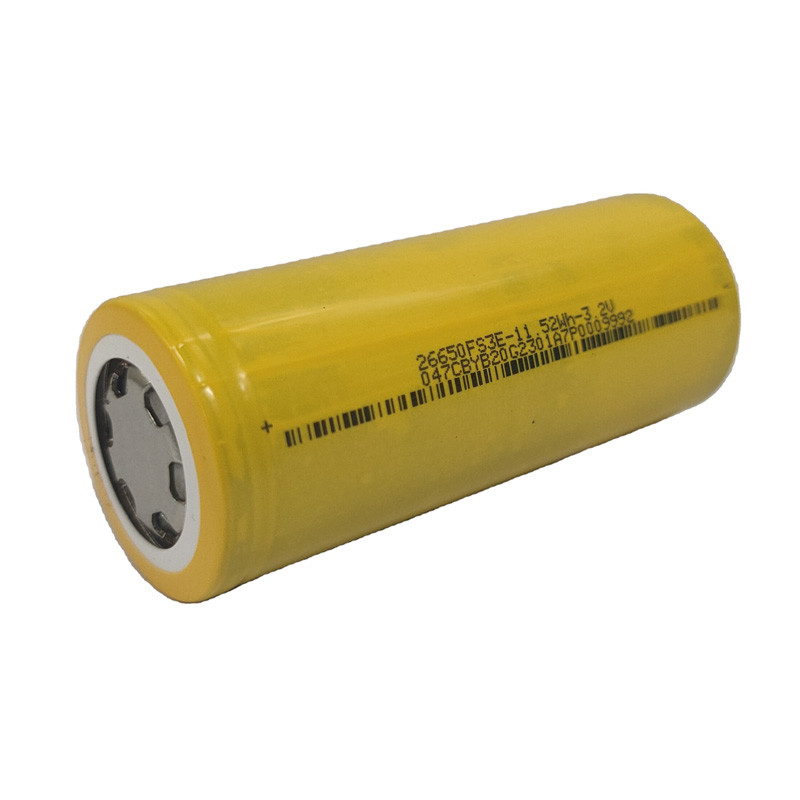

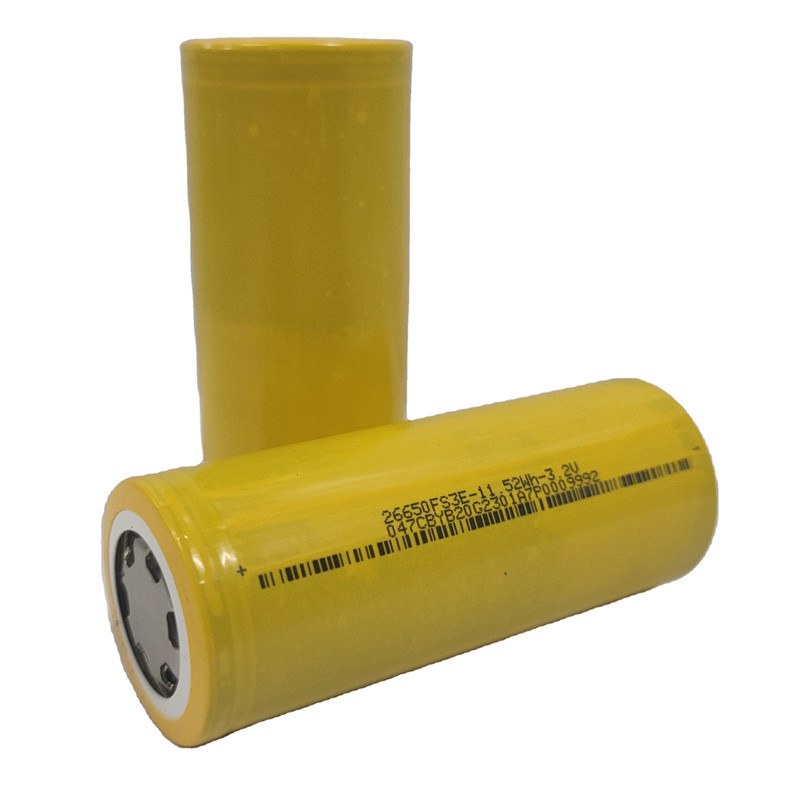

11.52Wh 3600mAh LiFePO4 Battery Cells Rechargeable For Flashlight
| Place of Origin | CHINA |
|---|---|
| Brand Name | EA ENERGY |
| Certification | CE MSDS UN38.3 |
| Model Number | 26650 3600mAh |
| Minimum Order Quantity | 1PCS |
| Price | Negotiable |
| Packaging Details | 27*27*15cm 200pcs / carton GW:14kg |
| Delivery Time | 1-5 Work days |
| Payment Terms | T/T, Western Union, MoneyGram, T/T, D/P |
| Supply Ability | 100000pcs Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diameter | 26.3±0.2mm*65.3±0.2mm | Voltage | 3.2V |
|---|---|---|---|
| Capacity | 3600mAh 11.52Wh | Impedance | ＜15mΩ |
| Standard Discharge Current | Constant Current 1C | Cell Type | LiFePO4 Battery |
| Certifications | CE /UL/UN38.3/ MSDS | Model | 3.2V 26650 3600mAh |
| Standard Charge Current | Constant Current 0.5C | Cycle Life | >4500 Cycles |
| High Light | 11.52Wh 3600mAh LiFePO4 Battery Cells,UN38.3 11.52Wh LiFePO4 Battery Cells,11.52Wh Lithium Rechargeable Battery |
||
Product Description
11.52Wh 3600mAh LiFePO4 Battery Cells Rechargeable For Flashlight
3.2v Lifepo4 Battery Cells 26650 3600mAh 11.52Wh Lithium Rechargeable Battery For Flashlight
Quick details:
1. Diameter*Height: 26*65mm (LiFePO4 26650 size)
2. Nominal Voltage: 3.2V
3. Nominal Capacity: 3600 mAh 11.52Wh
4. Cycle life: 5000 cycles
5. Standard charging ways: CC / CV
6. Li-ion / Lithium Ion LiFePO4 battery cell
7. CE , UL , UN38.3 , MSDS compliant
Description:
EA Energy has 14 years of experience in lithium battery production!
EA Energy LiFePO4 battery use Automotive Grade LiFePO4 Cells with higher energy density, more stable performance and greater power. Highest-level safety based on UL Testing Certificate for the cell inside.
100% safe, nontoxic, renewable energy. LiFepo4 battery will not burn when overcharged, over discharged, over current or short circuit, and can withstand high temperatures without decomposition. Smart BMS inside can handle cell balancing, low & high voltage cutoff, short circuit protection and temperature protection. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged
Our lithium battery weighs only 1/3 weight of the same capacity lead acid batteries! With no acid in the battery, you're able to safely mount it in any position. Perfect choice for variety types of backup power application, such as UPS, Fishfinder, Ride on toys, RV etc. Allow to be extended up to 4 in series and 4 in parallel (Max 4S4P) to get more capacity (Max 800Ah) and higher voltage (12V, 24V, 36V, 48V).
Providing 4000+ cycles while lead acid battery last 300-500 cycles. 2 year battery warranty & lifetime technical support.
We can also customize any size and function you need.Such as 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah etc..
Specifications:
| NO | Items | Specification | Remarks | |
| 1 | Nominal Capacity | 3600mAh | 0.2C 5A Discharge | |
| 0.2C 5A Discharge | ||||
| 2 | Nominal Voltage/shipping voltage | 3.2V/3.15-3.25V | Voltage | |
| 3 | Discharge Cut-off Voltage | 2.0V | 0.2C 5A Discharge | |
| 0.2C 5A Discharge | ||||
| 4 | Charge Limited Voltage | 3.65±0.03V | 0℃～45℃ | |
| 5 | Standard Charge Current | 0.2C 5A | 0℃～45℃ | |
| 6 | Standard Discharge Current | 0.2C 5A | -20℃~ +60℃ | |
| 7 | Rapid Charge Current | 0.5C 5A | 10℃～45℃ | |
| 8 | Rapid Discharge Current | 0.5C 5A | -20℃~ +60℃ | |
| 9 | Max. Charge Current | 1C 5A | ||
| Max Pulse Current | 3C | |||
| 10 | Internal Impedance | ≤20mΩ | AC 1kHz condition | |
| At AC 1kHz | ||||
| 11 | Weight | About 80.0g | Weight 80±2g | |
| 12 | Storage Temperature Range | ≤1 month | -20~ 45℃ | Factory Voltage 3.3~3.45V |
| ≤3 months | 0℃~ +30℃ | Ex-factory Voltage3.3~3.45V | ||
| ≤12 months | 20±5℃ | |||
Products Details :
Applications:
LiFePO4 battery use Automotive Grade LiFePO4 Cells with higher energy density, more stable performance and greater power. Like used for RV , solar campers ,solar home, motor homes, off-grid applications
