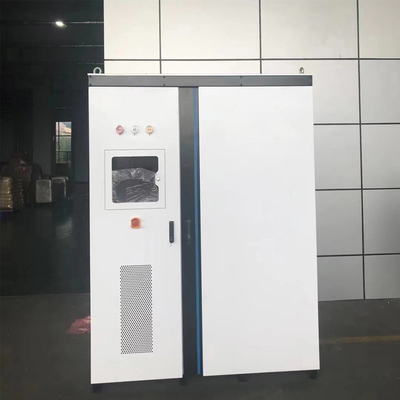

205KWh Commercial Energy Storage System Smart Energy Storage Cabinet With 100kw Pcs

205KWh Commercial Energy Storage System Smart Energy Storage Cabinet With 100kw pcs

100kw/205kwh Commercial Energy Storage Cabinet details :

1. Diameter*Height : 1550*1194*2164mm
2. DC Nominal Voltage : 811.2~1138.8Vdc
3. Nominal Energy : 205kwh

4. AC Rated output power(kW) : 100kw
5. Cycle life : 6000 cycles
6. Standard charging ways : CC / CV
7. With RS485 RS232 CAN
8. BMS inside ,UL1973/UL9540A//UL9540/IEC62619/IEC63056/IEC62933
9. Warrenty: 5 Years

100kw/205kwh Commercial Energy Storage system Specifications :

100kw/205kwh Commercial Energy Storage system Features:

100KW/205KWh outdoor energy storage cabinet, with a grid voltage of 400V, used for energy storage projects on the industrial and commercial user side. It can achieve functions such as peak shaving and valley filling, dynamic capacity increase, and backup power supply.

All equipment is integrated into one standard cabinet, which includes: power distribution system (including integrated energy storage control unit), energy storage converter (PCS), battery cluster, fire protection system, environmental control system (air conditioning and air cooling), monitoring system,etc.

100kw/205kwh Commercial Energy Storage Cabinet distribution :

1.The energy storage converter is selected as a non isolated type with an AC output of 400 (3P3W).

2.This smart energy storage cabinet single cell is 3.2V/206Ah lithium Iron phosphate cell, and the charge discharge ratio is 0.5C. The battery pack is 1P24S, and the battery cluster consists of 13 battery packs connected in series to form one battery cluster.

3.The battery module is designed with 3.2V/206Ah lithium iron phosphate cell 1P24S. Each battery module is composed of two 1P12S modules in series to form 76.8V/206Ah, with a total energy of 15.821KWh. At the same time, an internal collection harness and BMU are installed to collect the voltage and temperature of the battery cell.

4.The battery cluster adopts 13pcs of 1P24S battery modules in series, and also comes with a high-voltage box, which integrates BCMU internally.

5.The Battery management system (BAMS) of this Commercial Energy Storage Cabinet processes the battery information uploaded by the battery cluster control unit (BCMU), and has the functions of display, parameter setting, fault alarm,data recording, etc. It communicates with the energy management system (EMS) through the protocol converter.

6. this 100kw/205kwh commercial energy storage cabint system including fire protection system, environmental control system (air conditioning and air cooling), monitoring system

100kw/205kwh Commercial Energy Storage system Details :



100kw/205kwh Commercial Energy Storage system Applications :

this Commercial energy storage cabinet offer various benefits, including load shifting to reduce electricity costs, grid stabilization by balancing supply and demand, integration of renewable energy sources, and increased reliability for critical operations. These systems can be customized to meet specific power and capacity requirements, allowing businesses to effectively manage their energy consumption and improve overall efficiency.
