3.3MWh Commercial Energy Storage System Smart Energy Storage Cabinet With Liquid Cooled

3.3MWh Commercial Energy Storage System Smart Energy Storage Cabinet With Liquid Cooled system

Commercial Energy Storage Cabinet details :

1. Diameter*Height : 5.69m*2.13m*2.18m
2. Nominal Voltage : 1108.8~1425.6Vdc
3. Nominal Energy : 3385.8kwh
4. Cycle life : 6000 cycles
5. Standard charging ways : CC / CV
6. With RS485 RS232 CAN
7. BMS inside ,UL1973/UL9540A//UL9540/IEC62619/IEC63056/IEC62933
8. Warrenty: 5 Years

Commercial Energy Storage Cabinet Specifications :

Commercial Energy Storage Cabinet Features:

• High-capacity battery cells: LFP 300Ah

• Intelligent liquid cooling temperature control system, reducing energy consumption by approximately 30% compared to air cooling. Maximum temperature difference for megawatt-scale battery systems is less than 5℃.

• High safety: Equipped with ventilation and explosion-proof pressure relief devices, combustible gas detectors, and precise pack-level fire positioning.

• Long lifespan: 6000 cycles with 80% remaining energy under 0.5C charge and discharge conditions.

• Independent research and development of BMS (Battery Management System): High sampling accuracy, advanced SOC (State of Charge) and SOH (State of Health) calculation methods.

• Support for DC1500V voltage platform.

Commercial Energy Storage Cabinet distribution :

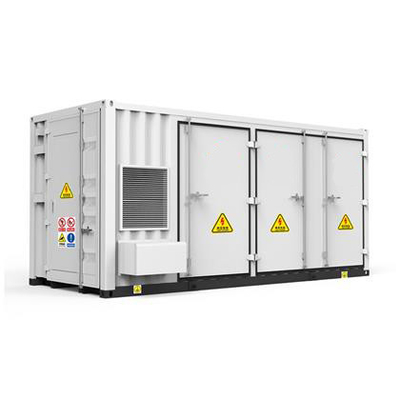

The 20ft containerized energy storage system is an integrated solution that includes a 300Ah large format lithium-ion battery pack, battery clusters and modules, liquid cooling system, fire suppression system, and monitoring system.

This system is designed to provide backup power or energy storage for commercial and industrial applications, such as data centers, hospitals, and manufacturing plants. The containerized design makes it easy to transport and install, while the large battery capacity ensures reliable power supply during outages or peak demand periods.

The use of high-capacity battery cells, along with an advanced cooling system, allows the system to achieve high power density and long cycle life. The fire suppression system provides an added layer of safety, while the monitoring system ensures continuous performance monitoring and early detection of any potential issues.

The commercial applications of this system are vast, and it has the potential to revolutionize the way energy is stored and distributed. With the increasing demand for renewable energy, energy storage systems like these are becoming increasingly important. As technology continues to improve, the prospects for energy storage systems will only continue to grow.

Commercial Energy Storage Cabinet Details :



Commercial Energy Storage Cabinet  Applications :

The containerized energy storage system has a wide range of applications in commercial and industrial settings. It can be used as backup power or energy storage for data centers, hospitals, manufacturing plants, and other facilities that require a reliable power source to prevent downtime and safeguard operations.

The system can also be used to support renewable energy sources such as wind and solar power, by storing excess energy during times of low demand and releasing it during peak periods. This helps to balance the grid and reduce reliance on fossil fuels.

In addition, the containerized design allows for easy deployment in remote locations or areas with limited space. It can also be used for off-grid power, such as in remote villages or on worksites where traditional power sources are not available.

Overall, the containerized energy storage system is a versatile solution that can be customized to meet the specific needs of various industries and applications.
