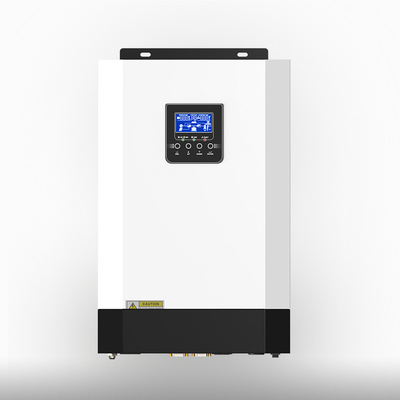

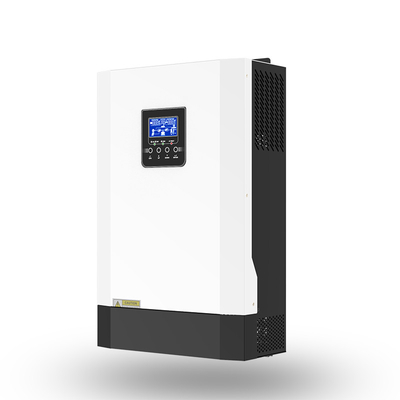

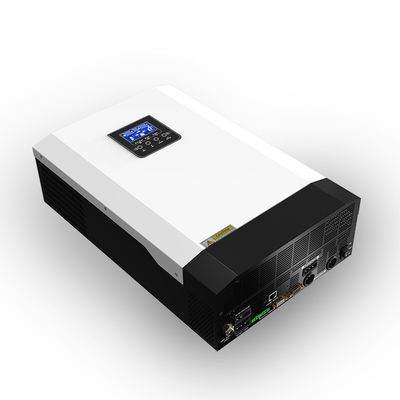

High Frequency Pure Sine Wave Off Grid Energy Storage Inverter 5.5KW With MPPT

  • High Frequency Pure Sine Wave Off Grid Energy Storage Inverter 5.5KW With MPPT
  • High Frequency Pure Sine Wave Off Grid Energy Storage Inverter 5.5KW With MPPT
  • High Frequency Pure Sine Wave Off Grid Energy Storage Inverter 5.5KW With MPPT
Place of Origin CHINA
Brand Name EA ENERGY
Certification CE(IEC62109-1)/CETL(UL 1741 CSA C22.2 NO.107.1)
Model Number MPS-H
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 426mm*322mm*126mm 1pcs / carton GW: 11.6kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 1000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model MPS-H Battery Voltage Range 40Vdc~60Vdc ± 0.6Vdc
Battery Type Sealed、FLood、GEL、LFP、Ternary Hybrid Charging Maximum Charging Current 80A
Output Voltage Waveform Pure Sine Wave Rated Output Voltage 230 (200/208/220/240Vac)
Rated Power 5500W MC Certification Level EN61000
Dimensions 426mm*322mm*126mm Weight 11.6kg
High Light

Off Grid Energy Storage Inverter

,

Energy Storage Inverter 5.5KW
Leave a Message
Product Description

High Frequency Pure Sine Wave Off Grid Energy Storage Inverter 5.5KW With MPPT

5.5kw Off-Grid Energy Storage Inverter details :

1. Diameter*Height : 472mm*297mm*129mm
2. Rated AC Input Voltage: 220/230Vac
3. Rated Output Voltage: 230(208/220/230Vac)
4. MPPT Voltage Range: 120-450Vdc
5. Warrenty: 5 Years

5.5kw Off-Grid Energy Storage Inverter Specifications :



Model MPS-H Adjustable
Battery Input
Battery type Sealed,FLood,GEL,LFP,Ternary √
Rated Battery Input Voltage 48V ( Minimum Startup Voltage 44V)

Hybrid Charging Maxi

mum Charging Current



80A



√
Battery Voltage Range 40Vdc~60Vdc ± 0.6Vdc(Undervoltage Warning/Shutdown Voltage/Overvoltage Warning/Overvoltage Recovery...)



√
Solar Input

Maximum PV Open-circuit

Voltage

500vdc


PV Working Voltage Range 120-500Vdc
MPPT Voltage Range 120-450Vdc
Maximum PV Input Current 18A
Maximum PV Input Power 6000W
Maximum PV Charging Current 110A √
AC Input(generator/grid)

Mains Maximum Charging

Current

60A

 √
Rated Input Voltage 220/230Vac
Input Voltage Range APL mode :(90Vac~280Vac)±2%
Frequency 50Hz/ 60Hz (Automatic Detection)
Mains Charging Efficiency >95%
Switch Time (bypass and inverter) 10ms(Typical Value)
Maximum Bypass Overload Current 40A
AC Output
Output Voltage Waveform Pure Sine Wave
Rated Output Voltage 230 (200/208/220/240Vac) √
Rated Output Power 5500 (4350/4500/4800/5500VA)
Rated Output Power 5500 (4350/4500/4800/5500W)
Peak Power 11000VA
On-load Motor Capacity 4HP
Output Frequency Range(Hz) 50Hz土0.3Hz/60Hz±0.3Hz √
Maximum Efficiency >90%
No-load Loss Non Energy-saving Mode: ≤50W Energy-saving Mode:≤25W (Manual Setup)
General
Certificate CE(IEC62109-1)/CETL(UL 1741 CSA C22.2 NO.107.1)
EMC Certification Level EN61000
Working Temperature Range -15°C ~ 55°C
Storage Temperature Range -25°C ~ 60°C
Humidity Range 5% to 95%(Conformal Coating Protection)
Dimensions 472mm*297mm*129mm
Weight 10.5KG


5.5kw Off-Grid Energy Storage Inverter Description :



  1. Scalability: The inverter can be scaled up or down based on the power requirements of the system, allowing flexibility to accommodate future expansions or changes.
  2. pure sine wave output: the inverter produces a clean and stable ac signal that is similar to the power from the grid, making it suitable for powering sensitive electronics without interference or damage
  3. Off-grid Functionality: This inverter is specifically designed for off-grid systems, meaning it can operate independently without relying on the utility grid.
  4. Energy Storage Compatibility: The inverter is suitable for use with energy storage systems, enabling the capture and utilization of surplus energy generated from renewable sources.
  5. Conversion Efficiency: It offers high efficiency in converting direct current (DC) power from the batteries or solar panels into alternating current (AC) power, minimizing energy losses during the process.


function and advantages of 5.5kw Off-Grid Storage Inverter



  1. ​Hybrid Solar Systems: Combines the inverter with solar panels and batteries to create hybrid systems that can generate, store, and utilize renewable energy efficiently.
  2. Residential Off-grid Systems: Suitable for homes or cabins located in remote areas without access to the utility grid, providing reliable electricity for household appliances and devices.
  3. Backup Power Systems: Acts as a backup power source during grid outages or emergencies, ensuring continuous electricity supply for critical loads. built-in battery charger: the inverter can also charge a battery bank connected to the system, which allows for energy storage and use during times when the sun isn't shining.
  4. Rural Electrification: Can be used to bring electricity to rural communities or areas with limited infrastructure, offering a sustainable and independent power solution.




5.5kw Off-Grid Storage Inverter  Details :

High Frequency Pure Sine Wave Off Grid Energy Storage Inverter 5.5KW With MPPT 0

5.5kw Off-Grid Storage Inverter Applications :



The 5.5kW off-grid energy storage inverter is suitable for a wide range of applications, including residential properties, rural electrification projects, backup power solutions, and hybrid solar systems.

Its versatility, scalability, and efficient energy conversion make it an ideal solution for those seeking reliable and sustainable off-grid power options.

It provides a reliable and independent power supply, enabling users to harness renewable energy and reduce reliance on the utility grid.


High Frequency Pure Sine Wave Off Grid Energy Storage Inverter 5.5KW With MPPT 1
