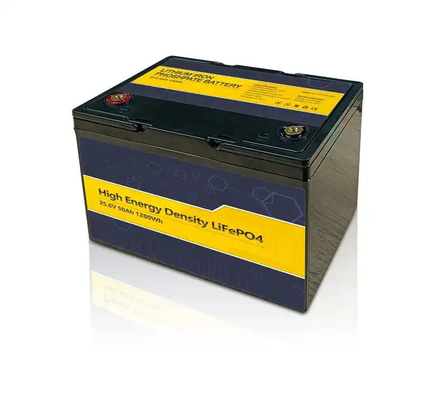

24V 50Ah 1280Wh Deep Cycle LiFePO4 Battery 10 Years Lifetime

  • 24V 50Ah 1280Wh Deep Cycle LiFePO4 Battery 10 Years Lifetime
  • 24V 50Ah 1280Wh Deep Cycle LiFePO4 Battery 10 Years Lifetime
  • 24V 50Ah 1280Wh Deep Cycle LiFePO4 Battery 10 Years Lifetime
  • 24V 50Ah 1280Wh Deep Cycle LiFePO4 Battery 10 Years Lifetime
  • 24V 50Ah 1280Wh Deep Cycle LiFePO4 Battery 10 Years Lifetime
Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 24V 50A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 307*169*208mm 1pcs / carton GW: 13kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 1000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 25.6V Configuration 8S9P Prismatic Cells
Model 24V 50Ah LiFePO4 Battery Diameter 307*169*208mm
Capacity 50A 1280Wh Cycle Life >6000 Cycles
Impedance ＜10mΩ Standard Charge Current Constant Current 0.5C
Standard Discharge Current Constant Current 1C Certifications CE /UL/UN38.3/ MSDS
High Light

1280Wh Deep Cycle LiFePO4 Battery

,

24V 50Ah Deep Cycle LiFePO4 Battery

,

1280Wh 24V 50Ah LiFePO4 Battery
Leave a Message
Product Description

24V 50Ah 1280Wh Deep Cycle LiFePO4 Battery 10 Years Lifetime



24V 50Ah 1280Wh Deep Cycle LiFePO4 Battery 6000 Life Cycles & 10-Year Lifetime



LiFePO4 Car Battery details:



1. Diameter*Height: 329*172*243mm

2. Nominal Voltage: 25.6V

3. Nominal Capacity: 50A 1280Wh

4. Cycle life: 6000 cycles

5. Standard charging ways: CC / CV

6. Li-ion / Lithium Ion rechargeable LiFePO4 battery

7. CE , UL ,UN38.3 , MSDS compliant





24V 50Ah LiFePO4 Battery Specifications:



Basic
Description
Data
Configuration
Series connection
max support 4pcs 24v50ah into serials connection
Paralles
available
Country of manufacture
China top brand cell
Cell type
Cylinder
Configuration
8S9P
Appearance
Total weight
13kgs
Size
307*169*208mm
Voltage
Voltage, max charge
29.2v
Voltage, Nominal
25.6v
Voltage, discharge end
20v
Capacity
Rated Capacity
50ah/1280Wh
Current
Continous Charge Current allowed(Battery Pack)
10A
Max/Peak Discharge Current(Battery Pack)
150A
Continous Discharge Current(Battery Pack)
50A
Chemistry
Cathode material
Phosphate
Anode material
Carbon
Cycle life
6000cycles
Time
Standard charge hours
4hours
Rapid charge hours
1hour(should change suitable BMS)
Temperature
Storage(less than 1month)
-10~50℃
Storage(less than 3months)
0~45℃
Storage(less than 1year)
0~35℃
Working Temperature
0~60℃
BMS basic function
Single serial over voltage
3.65V/cell
Single serial under voltage
2.5V/cell
Over current protection
4C A
Over Charge protection
with
Temperature monitoring&cut off
with, cut off at 65℃ or can be customized
Balancing/Equivalization function
with, balance start 3.4V/cell
Short circuit protection
with
With branded app
can make your branded app, free of charge
Wit RS485/232, CAN communication
without, can add if needed
Handle
Battery case or battery pack With a handle
with
Connector
Charge connector type & cable length
M8 brass inner screw
Discharge connector type & cable length
M8 brass inner screw


24V 50Ah LiFePO4 Battery Description:



Efficient Power: Our LiFePO4 battery’s flat discharge curve holds above 24V for up to 95% of its capacity usage providing astronomical boosts in run-time compared to only 50% in Lead Acid.



Longer Service Life: delivering exceptional power up to 6000+ cycles. compared to 200 - 500 cycles & a 3 years lifetime in typical Lead Acid chemistry.



No maintenance with five times the lifespan of traditional batteries. All Series batteries include our dynamic low temperature charging protection and are capable of parallel or series connections. Efficiently engineered into a space saving case that takes up 25% less space. Each battery comes with a 10-year warranty.



Impeccably Lightweight: Our LiFePO4 battery is only a 1/3 of the weight of Lead Acid which makes it the disputable choice for RVs, Marine and Off-Grid Applications when towing or mobility is in the consideration.



Complete Protection: The lithium battery’s unique built-in Battery Management System (BMS) protects it from overcharge, deep discharge, overloading, overheating and short circuit, and excessive low self-discharge rate ensuring up to 1 year maintenance-free storage. Built-in low-temp cut off prevents charging under 23 °F (-5 °C).



Perfect for maximizing energy storage and power needs as a drop-in deep cycle battery replacement for recreational vehicles, off-grid solar applications, boats, trolling motors and much more…







24V 50Ah LiFePO4 Battery Products Details :



24V 50Ah 1280Wh Deep Cycle LiFePO4 Battery 10 Years Lifetime 0





24V 50Ah LiFePO4 Battery Applications:



24V 50Ah LiFePO4 battery pack widely used in most areas such as RV, Solar, Household Battery, Off-Grid and Electric Scooter, Electric Handicap and so on. Note: The battery cannot be used as a starting battery .



24V 50Ah 1280Wh Deep Cycle LiFePO4 Battery 10 Years Lifetime 1
