Deep Cycle 12.8V Rechargeable Lithium Battery For Home Power Storage
Place of Origin | CHINA |
---|---|
Brand Name | EA ENERGY |
Certification | CE MSDS UN38.3 |
Model Number | 12.8V 200A |
Minimum Order Quantity | 1PCS |
Price | Negotiable |
Packaging Details | 522*240*218mm 1pcs / carton GW: 27kg |
Delivery Time | 1-5 Work days |
Payment Terms | T/T, Western Union, MoneyGram, T/T, D/P |
Supply Ability | 100000pcs Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCell Type | Lithium LiFePO4 Battery Pack | Model | 12V 200Ah LiFePO4 Battery |
---|---|---|---|
Capacity | 200A 2560Wh | Diameter | 522*240*218mm |
Voltage | 12.8V | Impedance | <200mΩ |
Standard Charge Current | Constant Current 0.2C | Standard Discharge Current | Constant Current 0.2C |
Cycle Life | >5000 Cycles | Certifications | CE /UL/UN38.3/ MSDS |
High Light | 12.8V Rechargeable Lithium Battery,2560Wh Deep Cycle Lead Acid Battery,2560Wh 12V 200Ah LiFePO4 Battery |
Deep Cycle 12.8V Rechargeable Lithium Battery For Home Power Storage

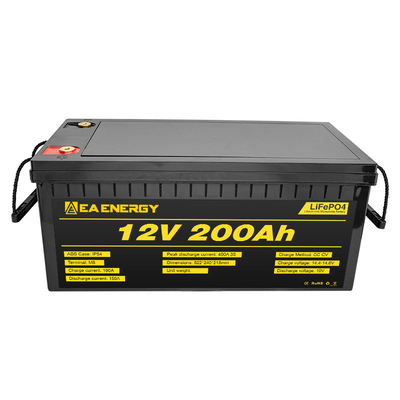

12V 200Ah LiFePO4 Battery Built-In 200A BMS , RV Deep Cycle Rechargeable Lithium Battery For Home Power Storage
Deep Cycle Rechargeable Lithium Battery Details:
1. Diameter*Height: 522*240*218mm
2. Nominal Voltage: 12.8V
3. Nominal Capacity: 200A 2560Wh
4. Cycle life: 5000 cycles
5. Standard charging ways: CC / CV
6. Li-ion / Lithium Ion rechargeable LiFePO4 battery
7. CE , UL ,UN38.3 , MSDS compliant
Deep Cycle Rechargeable Lithium Battery Description:
EA ENERGY lithium iron batteries have excellent quality since they are manufactured by Automotive Grade LiFePO4 Cells with more stable performance, high energy density and greater power. Lithium iron phosphate batteries have CE certificate and pass UN 38.3, MSDS Test. With no acid in the battery, you're able to safely mount in any position. This makes li-iron batteries perfect for solar home, RV, campers, golf cart, motor homes, off-grid applications.
EA ENERGY 200Ah LiFePO4 battery built-in 200A BMS, which supports 200A max. continuous charge/discharge current, Load power and 2560Wh max. energy. Equipped with exceptional quality 200A BMS can also limit the continuous charge/discharge current, our 200Ah LiFePO4 battery can better protect the battery performance and prolong the cycle times. We do 100% testing for all 200ah batteries before
EA ENERGY 12V 200Ah LiFePO4 battery provides 2000-5000 cycles, which is more than 10 times to Lead Acid with 200~500 cycles. EA ENERGY LiFePO4 battery has a 10-year service life, three times longer than the Lead Acid’s 3-year lifetime.
LiFePO4 Battery weighs only 46.3 lbs for one module, 30% lighter than that of lead acid batteries. It it an easier and more convenience choice for RV, Marine and Off-Grid Applications when mounting or moving.
EA ENERGY LiFePO4 battery’s flat discharge curve keeps above 12.8V for up to 95% of its capacity usage, offering astronomical boosts in run-time compared to only 50% in Lead Acid. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged. As a solar energy storage cell, 12V Lithium Battery is a power supply for 12V household appliances, such as refrigerators, washing machines, TV, monitors and air conditioners.
Deep Cycle Rechargeable Lithium Battery Specifications:
Electrical Characteristics |
Nominal Voltage | 12.8V |
Nominal Capacity | 200Ah@0.2C | |
Energy | 2560Wh | |
Internal Resistance | 35≤mΩ | |
Cycle Life | 3000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
Self Discharge | ≤3.5% per month at 25℃ | |
Standard Charging | Max.Charging Voltage | 14.0~14.6V |
Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, andthen,changed continuously with constant voltage of 14.6V until the current was notmore than 0.02C5A | |
Charging Current | 40A | |
Max.Charging Current | 100A | |
Standard Discharging | Discharging Current | 40A |
Max. Continuous Current | 100A | |
Max.Pulse Current | 200A(<3S) | |
Discharging Cut-off Voltage | 10.0V | |
Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Structure | Cell & Format | IFR32700 |
Casing | Plastic | |
Dimension(L*W*H*TH) | 522*240*218mm | |
Weight | Approx. 27Kg | |
Terminal | M8 |
Deep Cycle Rechargeable Lithium Battery Products Details :
Deep Cycle Rechargeable Lithium Battery Applications:
12V 200Ah LiFePO4 battery pack widely used in most areas such as RV, Solar, Household Battery, Marine, Off-Grid and Electric Scooter, Electric Handicap and so on. Note: The battery cannot be used as a starting battery .
