24V 100Ah IP65 Solar LiFePO4 Battery For Home Storage System
Place of Origin | CHINA |
---|---|
Brand Name | EA ENERGY |
Certification | CE MSDS UN38.3 |
Model Number | 24V 100Ah |
Minimum Order Quantity | 1PCS |
Price | Negotiable |
Packaging Details | 522*240*218mm 1pcs / carton GW: 23kg |
Delivery Time | 1-5 Work days |
Payment Terms | T/T, Western Union, MoneyGram, T/T, D/P |
Supply Ability | 100000pcs Per Day |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | 24V 100Ah Solar Battery | Voltage | 25.6V |
---|---|---|---|
Capacity | 100A 2560Wh | Diameter | 522*240*218mm |
Cycle Life | >6000 Cycles | Cell Type | LiFePO4 Battery Cells |
Impedance | <60mΩ | Standard Charge Current | Constant Current 0.5C |
Standard Discharge Current | Constant Current 1C | Certifications | CE /UL/UN38.3/ MSDS |
Highlight | IP65 Solar LiFePO4 Battery,IP65 24V 100Ah LiFePO4 Battery,UN38.3 Solar LiFePO4 Battery |

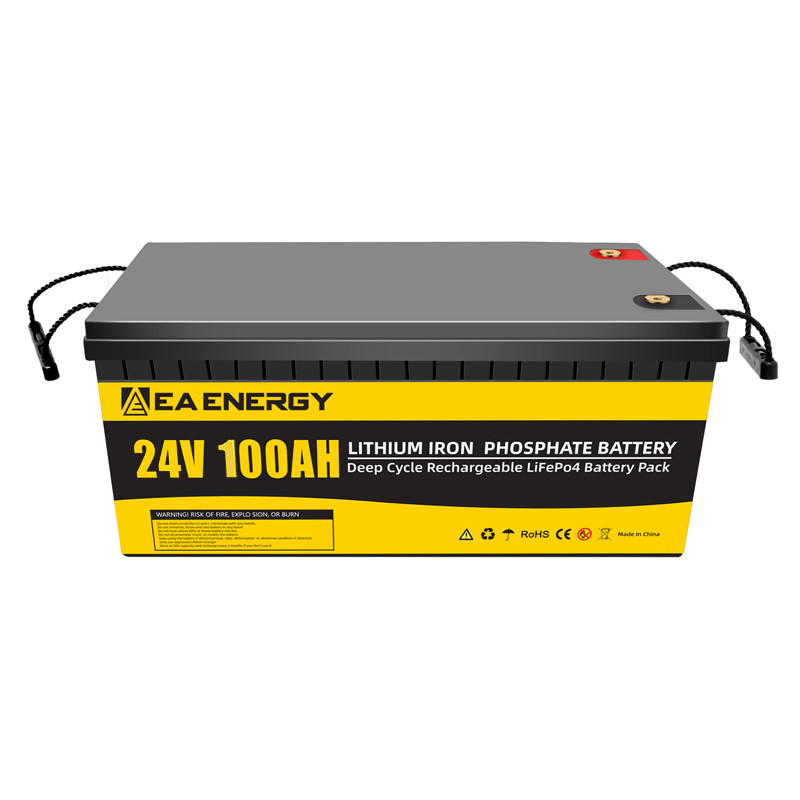

24V 100Ah IP65 Solar LiFePO4 Battery For Home Storage System
24V 100Ah Deep Cycle Solar LiFePO4 Battery For Home Storage System
24V 100Ah Solar Battery details:
1. Diameter*Height : 522*240*218mm
2. Nominal Voltage : 25.6V
3. Nominal Capacity : 2560wh
4. Cycle life : 6000 cycles
5. Standard charging ways : CC / CV
6. Built-in BMS with multiple protections
7. BMS inside ,CE , UL , UN38.3 , MSDS compliant
8. Warrenty: 10 Years
24V 100Ah Solar Battery Specifications:
Model No.
|
AF-2450
|
AF-24100
|
AF-24150
|
AF-24200
|
AF-24400
|
Nominal voltage
|
24V
|
24V
|
24V
|
24V
|
24V
|
Nominal capacity
|
50ah
|
100ah
|
150ah
|
200ah
|
400ah
|
Battery type
|
grade A 3.2V lifePO4 Prismatic Lithium iron phosphate battery cell
|
||||
Battery configation
|
8S1P
|
8S1P
|
8S3P
|
8S1P
|
8S2P
|
Charge method
|
CC/CV(constant current/constant voltage)
|
||||
Net weight
|
12KG
|
23.5KG
|
32.5
|
42
|
/
|
Battery Size
|
L329xW172xH214mm
|
L522xW240xH218mm
|
L522xW240xH218mm
|
L520xW269xH220mm
|
/
|
Warranty
|
5 years/4000+cycle life
|
||||
Built-in BMS
|
Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc
|
||||
Enclosure Protection
|
IP65 or customized
|
||||
OEM Services
|
Sticker/LOGO/Package/connector
|
||||
Storage Temperature
|
-10~45℃
|
24V 100Ah Solar Battery Description:
EA ENERGY 24V 100Ah Lithium Iron Phosphate (LiFePO4) batteries have exceptional quality since they are assembled by Automotive Grade LiFePO4 Cells with UL certificated, which have higher energy density, more stable performance, greater power, and excellent 3% self-discharge rate.
A single 24V 100Ah lithium battery equals two 12V 100Ah lithium batteries. 24V higher voltage and 2.56kWh energy, supports up to 4P2S connection to make a 48V 400Ah battery bank of 20.48kWh energy, enabling you to build your battery system with easier operation and are perfect as backup power.
LiFePO4 battery provides 4000~15000 cycles, which is more than 10 times to Lead Acid with 200~500 cycles. LiFePO4 battery can realize 100% SOC&DOD and has a 10-year service life, 3 times longer than the Lead Acid battery’s 3-year lifespan.
The environmentally friendly lithium ion battery configured with high-performance BMS. BMS with improted chips and MOS,with balancing function and dual protection, has a wide range of performance and application advantages compared with conventional battery.
All they are grade A cells, Longer cycle life, full inspection before shipment.
24V 100Ah Solar Battery Details :
24V 100Ah Solar Battery Applications:
24V 100Ah LiFePO4 battery pack widely used in most areas such as RV, Solar, Household Battery, Marine, Off-Grid and Electric Scooter, Electric Handicap and so on. Note: The battery cannot be used as a starting battery .
