178Ah 3.2V LiFePO4 EV Battery Cells , CATL Prismatic Battery Cells

  • 178Ah 3.2V LiFePO4 EV Battery Cells , CATL Prismatic Battery Cells
  • 178Ah 3.2V LiFePO4 EV Battery Cells , CATL Prismatic Battery Cells
  • 178Ah 3.2V LiFePO4 EV Battery Cells , CATL Prismatic Battery Cells
Place of Origin CHINA
Brand Name CATL
Certification CE MSDS UN38.3
Model Number Prismatic Battery
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 200*199*170mm 5pcs / carton GW: 20kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model CATL 3.2V 178Ah Voltage 3.2V
Capacity 178Ah Impedance ＜0.5mΩ
Diameter 46*199*170mm Standard Charge Current Constant Current 0.5C
Standard Discharge Current Constant Current 1C Cell Type Prismatic Lithuim Battery
Cycle Life >5000 Cycles Certifications CE /UL/UN38.3/ MSDS
High Light

178Ah EV Battery Cells

,

LiFePO4 EV Battery Cells

,

3.2V Prismatic Battery Cells
Leave a Message
Product Description

CATL 3.2V 178Ah LiFePO4 Ev Battery Cells Prismatic Battery Cells In Stock

CATL 3.2V 178Ah LiFePO4 battery details:

1. Diameter*Height: 46*199*170mm
2. Nominal Voltage: 3.2V
3. Nominal Capacity: 176Ah
4. Cycle life: 5000 cycles
5. Standard charging ways: CC / CV
6. Li-ion / Lithium Ion rechargeable battery cells
7. CE , UL ,UN38.3 , MSDS compliant


CATL 3.2V 178Ah LiFePO4 battery Specifications:


Model Name
3.2V CATL 178Ah
General Specification
Nominal Capacity
178Ah
Nominal Voltage
3.2V
Charge Cut off Voltage
3.7V
Discharge Cut off Voltage
2.8V
AC Impedance Resistance
≤0.5mΩ
Max Charge Current
Max 1C
Max Discharge Current
Max 3C
Cycle Life
≥5000 cycles
Charging Temperature
0℃~45℃
Discharing Temperature
-20~60 ℃
Demension and Weight
Dimension
46*199*170±1.5mm
New Weight
3.47±0.15kg
Application
Suitable for Solar&Wind Energy Storage System,RV&Camper,Boats&Yacht,Golf Cart&EV,Electric Forklift,Street Light etc


CATL 3.2V 178Ah LiFePO4 battery Description:

ow we provide 3.2V176Ah LiFePO4 batteries manufactured from CATL,one of the leading lithium battery manufacturers from China. Here are advantages of our 3.2V176Ah LiFePO4 batteries

1. CATL 150Ah LFP cells can meet the needs of high-energy density and long distance travel, as well as safety and reliability. It has been widely applied to battery electroc vehicles(BEV), plug-in hybrid electric vehicels(PHEV), hybrid electric vehicles and energy storage systems.

2. A Good low temperature performance.The low-temperature limit of LiFePO4 battery is -60℃ and the low-temperature discharge performance is good. significantly higher than that of ternary lithium battery
Under the same low temperature as that of lithium iron phosphate battery, the range of attenuation in winter is less than 30%,

3. A long battery life. According to the calculation of 5000 times of ternary battery circulation, a complete charge and discharge in three days can achieve a service life of 20 years. Even with the loss process, it can also reach more than 10 years.

4. A high energy density. The energy density of a battery is the amount of energy released per unit volume or mass of the battery,the higher the energy density of the battery, the more energy is stored per unit volume.The energy density of LiFepo4 batteries is around 150wh/kg and the energy density of CATL ncm battries is around 200wh/kg.

5. The battery is suitable for DIY lovers with experience.
Green environment, ISO14000 approval, products meet GB and UN criteria, and ROHS compliant.


CATL 3.2V 178Ah LiFePO4 battery Details :

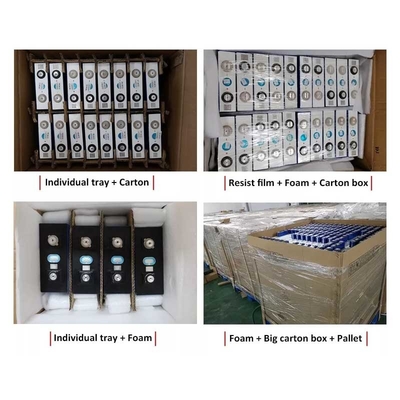

178Ah 3.2V LiFePO4 EV Battery Cells , CATL Prismatic Battery Cells 0


CATL 3.2V 178Ah LiFePO4 battery Applications:

CATL 3.2V 178Ah LiFePO4 battery as well as safety and reliability. It has been widely applied to battery electroc vehicles(BEV), plug-in hybrid electric vehicels(PHEV), hybrid electric vehicles and energy storage systems.
178Ah 3.2V LiFePO4 EV Battery Cells , CATL Prismatic Battery Cells 1
