CE MSDS UN38.3 Lifepo4 Prismatic Battery Storage System With Bolt

Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number LiFePO4 Battery Cells
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 20*74*40cm 2pcs / carton GW:4 kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Cell Type LiFePO4 Prismatic Battery Cells Model 3.2V 304Ah
Diameter H173mm*W72mm*T208mm Capacity 304Ah
Cycle Life >5000 Cycles Rd Charge Current Constant Current 1C
Standard Discharge Current Constant Current 1C Voltage 3.2V
Certifications CE /UL/UN38.3/ MSDS Impedance <0.5mΩ
High Light

3.2V 304Ah Lifepo4 Prismatic Battery


0.5mΩ Lifepo4 Prismatic Battery


304Ah 3.2 V Prismatic Cell

Leave a Message
Product Description

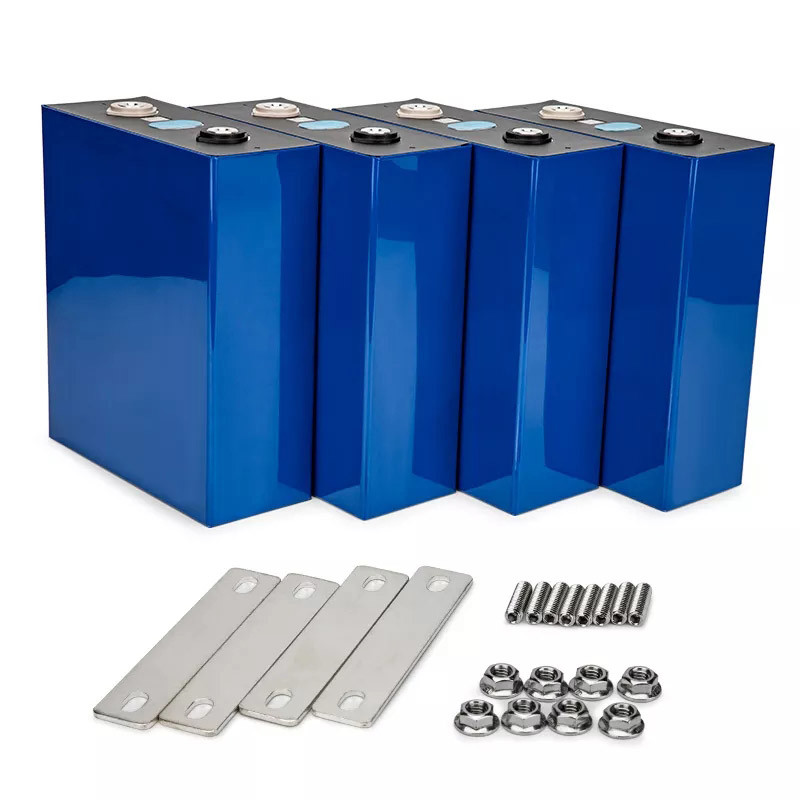

CE MSDS UN38.3 Lifepo4 Prismatic Battery Storage System With Bolt


3.2V 304Ah Grade A Storage System Battery Lifepo4 Prismatic Battery Cells With Bolt


Storage System Battery Quick details:


1. Diameter*Height : H173mm*W72mm*T208mm

2. Nominal Voltage : 3.2V

3. Nominal Capacity : 304Ah

4. Cycle life : 5000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion rechargeable LiFePO4 prismatic battery cells

7. CE , UL , UN38.3 , MSDS compliant


Storage System Battery Description:


Grade A 3.2V 304Ah Lifepo4 Batteries with QR Code DIY 12V Battery Lithium Iron Phosphate Battery Power Supply Lithium Iron Phosphate Lifepo4 Battery


1. High reliability of square lithium battery package;


2. Low power dissipation High energy efficiency of the system;


3. Relatively light weight, high energy density;


4. The structure is simple and the expansion capacity is relatively convenient.It is an important option to improve the energy density by increasing the monomer capacity.


5. If the capacity of the unit is large, the system structure is relatively simple, which makes it possible to monitor the unit one by one.Another benefit of the simplicity of the system is that it is relatively stable.

LiFePO4 battery provides 2000+ cycles compared to 300~500 cycles in lead acid battery. The service life of LiFePO4 batteries is 8 to 10 times than the standard lead-acid batteries. The weight of the lithium iron phosphate battery is 30% lighter than the lead-acid battery of the same capacity


Built-in Safety System
Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. Built-in high temp cut off prevents charging over 122 °F (50 °C). Plus, Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults. This product fits for outdoor camping power and indoor easy installation.

for 12 volt lithium battery,4pcs 3.2V 304Ah battery cells are easy to use, including all parts needed, no require professional knowledge, assemble in 10 min.


Quickly recharge

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.


50% lighter than lead acid battery of the same capacity, And there is no memory effect, no matter what state the battery is in, it can be used as soon as it is charged. Ideal for 25V deep cycle applications in Caravans, Camper Trailers, Medical Devices, Motorhomes & Electric Mobility Scooter.


Lifepo4 Prismatic Battery Cells Specifications:


Typical Capacity 304Ah
Typical Voltage 3.2V
AC Impedance Resistance ≤0.25mΩ-0.5mΩ
Standard charge and discharge Charge/Discharge Current 0.5C/0.5C
Standard charge and discharge Charge/Discharge Cut-off Voltage 3.65V/2.5V
Continuous Charge/Discharge Current 3C/3C-1C/1C
Pulse Charge/Discharge Ccurrent(30s) 5C/5C-1C/2C
Dimension H174mm*W72mm*T208mm
Charging Working Temperature 0℃~55℃ (0℃~60℃)
Discharging Working Temperature -20℃~55℃ (-30℃~60℃)


Storage System Battery Products Details :


CE MSDS UN38.3 Lifepo4 Prismatic Battery Storage System With Bolt 0

CE MSDS UN38.3 Lifepo4 Prismatic Battery Storage System With Bolt 1



Lifepo4 Prismatic Battery Cells Applications:


Prismatic Battery cells
wildly use for bfor Electric bicycle/motorcycle/scooter energy storage, solar power system, UPS electric appliances power supply, golf trolley/carts power tools.


CE MSDS UN38.3 Lifepo4 Prismatic Battery Storage System With Bolt 2


CE MSDS UN38.3 Lifepo4 Prismatic Battery Storage System With Bolt 3
