Built In Smart BMS 36V 56Ah LiFePO4 Lithium Ion Battery Pack For Golf Carts

  • Built In Smart BMS 36V 56Ah LiFePO4 Lithium Ion Battery Pack For Golf Carts
  • Built In Smart BMS 36V 56Ah LiFePO4 Lithium Ion Battery Pack For Golf Carts
  • Built In Smart BMS 36V 56Ah LiFePO4 Lithium Ion Battery Pack For Golf Carts
Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 56Ah
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 386*338*244mm 1pcs / carton GW: 27kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model 36V Golf Carts Battery Cell Type 3.2V Prismatic LiFePO4 Battery Cells
Voltage 38.4V Capacity 56Ah
Standard Charge Current Constant Current 0.2C Impedance ＜40mΩ
Standard Discharge Current Constant Current 0.2C Diameter 386*338*244mm
Cycle Life >5000 Cycles Certifications CE /UL/UN38.3/ MSDS
High Light

36V Lithium Ion Battery Pack

,

56Ah Lithium Ion Battery Pack

,

Built In BMS LiFePO4 Battery Packs
Leave a Message
Product Description

36V 56Ah LiFePO4 Lithium Ion Battery Pack For Golf Carts Built-In Smart BMS



Description of 36V 56Ah Golf Carts Battery:

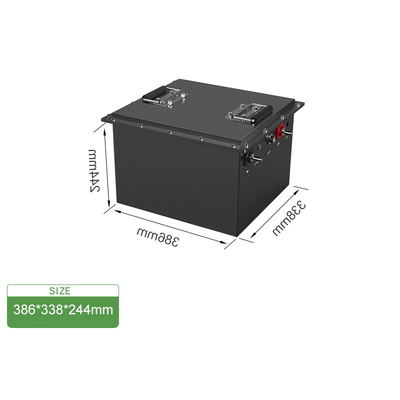

1. Diameter*Height : 386*338*244mm ( Lithium prismatic LiFePO4 pack )

2. Nominal Voltage : 38.4V

3. Nominal Capacity : 56Ah

4. Cycle life : 5000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion rechargeable LiFePO4 battery cell

7. CE , UL ,UN38.3 , MSDS compliant



Specification of 36V 56Ah Golf Cart Battery:



Model
EA3856
EA3880
EA38105
Cell
LiFePO4 Battery Cells
LiFePO4 Battery Cells
LiFePO4 Battery Cells
Rated capacity(at 0.2C)
56Ah
80Ah
105Ah
Rated voltage
38.4V
38.4V
38.4V
Cycle Life
Over 5000cycles (@25°C, 0.2C, RT, 80% DOD)
Over 5000cycles (@25°C, 0.2C, RT, 80% DOD)
Over 5000cycles (@25°C, 0.2C, RT, 80% DOD)
Charging method
0.2C to 43.2V, then charge current to 0.02C (CC/CV)
0.2C to 43.2V, then charge current to 0.02C (CC/CV)
0.2C to 43.2V, then charge current to 0.02C (CC/CV)
Recommended charge voltage
43.8V
43.8V
43.8V
Discharge cut-off voltage
30V
30V
30V
Standard charge current
0.2C
0.2C
0.2C
Max. charge current
0.5C
0.5C
0.5C
Continuous discharge current
50A or customized
80A or customized
100A or customized
Peak discharge current
200A (10s) or customized
200A (10s) or customized
200A (10s) or customized
Self-discharge
25°C, monthly≤3%
25°C, monthly≤3%
25°C, monthly≤3%
BMS
Built-in smart BMS
Built-in smart BMS
Built-in smart BMS
Communication port
CANBus or customized
CANBus or customized
CANBus or customized
IP Rating
IP67 or customized
IP67 or customized
IP67 or customized
Temperature (Charge)
0°C ~ 55°C
0°C ~ 55°C
0°C ~ 55°C
Temperature (Discharge)
-20°C ~ +55°C
-20°C ~ +55°C
-20°C ~ +55°C
Temperature (Storage)
0°C ~ 35°C
0°C ~ 35°C
0°C ~ 35°C
Battery dimension
386*338*244mm or customized
386*338*244mm or customized
386*338*244mm or customized
Total weight(Approx.)
27Kg or customized
31Kg or customized
34Kg or customized
Warranty
5years
5years
5years
Design life
10years
10years
10years
SOC display
Optional
Optional
Optional


Feature Of 36V 56Ah Golf Cart Battery:



1.Lithium Iron Phosphate is one of the safest battery chemistry available. Our golf cart 36V 56Ah LiFePO4 batteries can last through 5,000 charging cycles. That’s more than twenty times the longevity of a standard 6-volt golf cart battery or 12-volt golf cart battery.36v batteries are ideal for carts used in standard settings — like cruising around on the golf course or driving slowly on smooth sidewalks



2. Built-In BMS Protection: This 36V 56Ah Lithium Battery Unlike other systems that have one BMS for the entire system Allied battery has a BMS in every battery. All our batteries pass UL Testing and have FCC, CE, PSE, IP65 certificates, and a 5-10 years warranty free you from battery security concerns.



3. Lithium Batteries weigh 28lbs and require much fewer batteries to run the cart efficiently. This results in an average weight reduction of 250+ lbs! This dramatic weight reduction increases acceleration, maximum speed, and distance!



4. Fast charging ,just plug in the Lithium Charger for an hour or two and the batteries will be fully charged. No need to trickle charge all day and night. Once charged the battery will only lose about 2-5% charge per month.



5. 56Ah 36V Battery can be connected in parallels for larger capacity. Connection in parallels: Up to 4 identical batteries for up to 220Ah. this new battery system Supply for Wide Application at home energy storage system and RV & camper, Houseboat, Travel Trailer, and more




36V 56Ah Golf Cart Battery Details :



Built In Smart BMS 36V 56Ah LiFePO4 Lithium Ion Battery Pack For Golf Carts 0





36V 56Ah Golf Cart Battery Applications:



36V 56Ah EA ENERGY Deep Cycle LiFePO4 battery has 5000-8000 cycles and 10 years lifetime. Stable and excellent performance makes it very suitable for UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, electric vehicles, DIY loud speaker, air pump, fish finder, golf car, trolling motor, motorhome/RV & camper, Houseboat, Travel Trailer, Dump Trailer and off-grid applications.



Built In Smart BMS 36V 56Ah LiFePO4 Lithium Ion Battery Pack For Golf Carts 1
