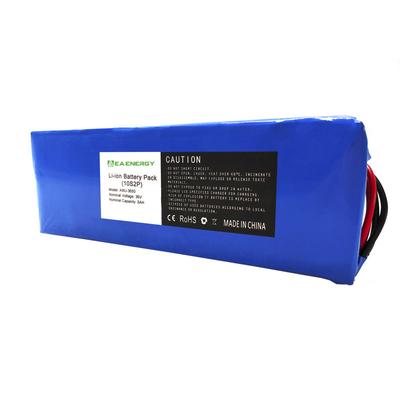

Ebike 5AH 36V LiFePO4 Battery Packs 18650 Lithium With 2A Charger
Place of Origin | CHINA |
---|---|
Brand Name | EA ENERGY |
Certification | CE MSDS UN38.3 |
Model Number | 36V 5Ah |
Minimum Order Quantity | 1PCS |
Price | Negotiable |
Packaging Details | 200X41X70mm 1pcs / carton GW: 1.2kg |
Delivery Time | 1-5 Work days |
Payment Terms | T/T, Western Union, MoneyGram, T/T, D/P |
Supply Ability | 100000pcs Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | 5Ah 36V 12S2P | Diameter | 21*4.5*7cm |
---|---|---|---|
Cell Type | 18650 LiFePO4 Battery Packs | Cycle Life | >5000 Cycles |
Capacity | 5Ah 180Wh | Impedance | <100mΩ |
Voltage | 36V | Standard Discharge Current | Constant Current 0.2C |
Standard Charge Current | Constant Current 0.2C | Certifications | CE /UL/UN38.3/ MSDS |
Highlight | 5AH 36V LiFePO4 Battery Packs,18650 180Wh LiFePO4 Battery Packs,180Wh 36V Ebike Battery |
Ebike 5AH 36V LiFePO4 Battery Packs 18650 Lithium With 2A Charger
36V Ebike Battery 5AH Lithium LiFePO4 Battery Pack With 2A Charger And BMS For Electric Bike Scooter Motorcycle
36V LiFePO4 Battery Packs Quick details :
1. Diameter*Height : 200X41X70mm ( Lithium Ion 18650 size 12S2P )
2. Nominal Voltage : 12V
3. Nominal Capacity : 5Ah 180Wh
4. Cycle life : 5000 cycles
5. Standard charging ways : CC / CV
6. Li-ion / Lithium Ion rechargeable LiFePO4 battery cell
7. CE , UL ,UN38.3 , MSDS compliant
36V Ebike Battery Pack Description :
36V 5AH 2A BMS Protection Board, fit for Trolling Motor, Kids Scooters, Power Wheels, RV
[10 Year lifetime] ECO-Worthy lithium iron phosphate battery (LiFePO4) can be recharged more than 3000 times in a deep cycle to achieve a longer cycle life. More than 8 times higher than lead-acid batteries (generally only 300-400 cycles can be charged).
[100% Protection] Built-in BMS(Battery Management System) protects the cell from getting damage like: overcharge, over-discharge, short-circuit. And keep balance between battery cells.
[Lightweight design] The 5Ah lithium battery has a lightweight design and weighs only 4.85 pounds, much lighter than the lead-acid one. The lithium battery is easy to take outdoors and place in any position that can not be achieved by lead-acid ones.
[Broad Application] The 5AH lithium battery is suitable for RV, caravan, marine, camper, electric scooter, golf carts, power wheels, trolling motor, tool trailer, backup power supply, solar, off-grid, etc.
[Capacity Expansion] The 5AH lithium battery can be used not only in parallel connections but also in series. It involves up to 4 identical batteries for connection in series and unlimited batteries in parallel.
Parameter. 36v 5ah battery suitable for 250w-750w motor. 42V 2A charger. 20A BMS(Battery Management System). Range is about 30 miles without pedaling
Longer Service Life. lithium battery still has more than 80% capacity after 1000cylces. life expectancy of our Ebike Battery up to 5 years
High Quality & Safe. Battery is equipped with a fuse and a BMS protective board in battery prevent over charge, over discharge, over current and short circuit and ensure the long life expectancy
Waterproof.Battery case is ABS which is super waterproof.you don’t worry battery was wet by rain or water
One-Year Warranty & Best After-Sales Service If our product has any problems, we can solve your problem within 24hours
We can also customize any size and function you need.Such as 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah etc..
LiFePO4 Battery Pack Specifications :
NO | Items | Specification | Remarks | |
1 | Nominal Capacity | 5Ah | 0.2C Discharge | |
0.2C Discharge | ||||
2 | Nominal Voltage/shipping voltage | 36V | Voltage | |
3 | Discharge Cut-off Voltage | 30V | 0.2C Discharge | |
0.2C Discharge | ||||
4 | Charge Limited Voltage | 40V | 0℃~45℃ | |
5 | Standard Charge Current | 2A | 0℃~45℃ | |
6 | Standard Discharge Current | 2A | -20℃~ +60℃ | |
7 | Rapid Charge Current | 0.5C 2A | 10℃~45℃ | |
8 | Rapid Discharge Current | 0.5C 2A | -20℃~ +60℃ | |
9 | Max. Charge Current | 1C 5A | ||
Max Pulse Current | 3C | |||
10 | Internal Impedance | ≤10mΩ | AC 1kHz condition | |
At AC 1kHz | ||||
11 | Weight | About 1.2kg | Weight 1200±20g | |
12 | Storage Temperature Range | ≤1 month | -20~ 45℃ | Factory Voltage 36~40V |
≤3 months | 0℃~ +30℃ | Ex-factory Voltage 36~40V | ||
≤12 months | 20±5℃ |
LiFePO4 Battery Pack Details :
LiFePO4 Deep Cycle Rechargeable Battery Applications :
LiFePO4 widely use in most areas such as: lighting (LED strip etc.), Digital/CCTV cameras, Portable TV, e-Robot, Electric Vehicles (e-Bike, e-Robot, kid electric car), Loudspeaker, 12V Router, Air Pump, Fish Finder, Motorhome / RV & Camper and more
