60V 40A 16S8P LiFePO4 Battery Packs 5000 Cycles For E Scooter

Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 60V 40Ah
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 32*16*10cm 200pcs / carton GW:10kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model 40Ah 60V 16S8P Diameter 320mm*160mm*10mm
Cell Type LiFePO4 Battery 21700 Packs Cycle Life >5000 Cycles
Capacity 40Ah 2400Wh Impedance <200mΩ
Voltage 60V Standard Discharge Current Constant Current 0.2C
Standard Charge Current Constant Current 0.2C Certifications CE /UL/UN38.3/ MSDS
High Light

60V 40A 16S8P LiFePO4 Battery Packs


2400Wh LiFePO4 Battery Packs


UN38.3 LifePO4 Lithium Battery Pack

Leave a Message
Product Description

60V 40A 16S8P LiFePO4 Battery Packs 5000 Cycles For E Scooter


60V 40A LiFePO4 Battery Pack 40AMP LifePO4 Lithium Battery Pack For E-Scooter


Quick details :


1. Diameter*Height : 360*160*100mm ( Lithium Ion 21700 size 16S8P )

2. Nominal Voltage : 60V

3. Nominal Capacity : 40Ah 2400Wh

4. Cycle life : 5000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion rechargeable LiFePO4 battery cell

7. CE , UL ,UN38.3 , MSDS compliant


LifePO4 Lithium Battery Pack​ Description :


60v 40ah Lithium Battery Pack fit for 100W to 1500W ebikes/motor/scooter. 16S8P batteries cells Fully Capacity.


Battery equipped with 40A BMS protective board prevent short circuit, over charge and over discharge ensure the above 1500 cycling long life expectancy.


Endurance Mileage: it can up to 30-40 miles without pedaling and it’s affected by factors such as load bearing, speed, terrain, etc. So there is a little deviation.


LiFePO4 Battery weighs only 47.4 lbs for one module, only 1/3 the weight of lead acid batteries, which makes it an easy choice for RVs, Marine and Off-Grid Applications when mounting or mobility is in the consideration.


LiFePO4 battery provides 4000~8000 cycles, which is more than 10 times to Lead Acid with 200~500 cycles. Ampere Time LiFePO4 battery has a 10-year service life, three times longer than the Lead Acid’s 3-year .


LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, overcurrent, and short circuit with excellent self-discharge rate. Operating Temp: Charge: 0°C~50°C; Discharge: -20°C~60°C. Our battery is IP65 waterproof, setting you free from worrying to install indoors or outdoors.


We can also customize any size and function you need.Such as 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah etc..




LiFePO4 Battery Pack Specifications :



NO Items Specification Remarks
1 Nominal Capacity 40Ah 0.2C  Discharge
0.2C  Discharge
2 Nominal Voltage/shipping voltage 60V Voltage
3 Discharge Cut-off Voltage 56V 0.2C Discharge
0.2C Discharge
4 Charge Limited Voltage 64V 0℃~45℃
5 Standard Charge Current 10A 0℃~45℃
6 Standard Discharge Current 20A -20℃~ +60℃
7 Rapid Charge Current 0.5C 6A 10℃~45℃
8 Rapid Discharge Current 0.5C 6A -20℃~ +60℃
9 Max. Charge Current 1C 40A
Max Pulse Current 3C
10 Internal Impedance ≤10mΩ AC 1kHz condition
At AC 1kHz
11 Weight About 10kg Weight 10050±20g
12 Storage Temperature Range ≤1 month -20~ 45℃ Factory Voltage 60~64V
≤3 months 0℃~ +30℃ Ex-factory Voltage 60~64V
≤12 months 20±5℃



LiFePO4 Battery Pack Products Details :

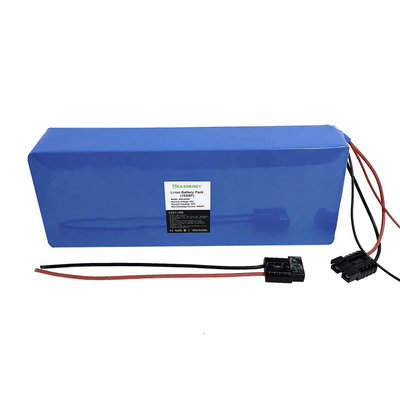

60V 40A 16S8P LiFePO4 Battery Packs 5000 Cycles For E Scooter 0


LiFePO4 Battery Pack Applications :


Electric Bike: Compatible with ANCHEER/VELOWAVE(Measurement is required)
Electric Scooter
Electric Motorcycle
Electric Tricycle
Solar Panels


60V 40A 16S8P LiFePO4 Battery Packs 5000 Cycles For E Scooter 1
