3.7V 500mAh 602045 Lithium Ion Polymer Battery For Mobile Devices

Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 3.7v 602045 500mAh
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 20*45*60cm 1000pcs / carton GW: 12kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage 3.7V Model 602045 Lithium Ion Polymer Battery
Diameter 20mm X 45mm X 6mm Capacity 500mAh
Cell Type Lithuim Ion Polymer Battery Cycle Life >1000 Cycles
Standard Charge Current Constant Current 0.2C Standard Discharge Current Constant Current 1C
Impedance <50mΩ Certifications CE /UL/UN38.3/ MSDS
High Light

602045 Lithium Ion Polymer Battery


3.7V 500mAh Lithium Ion Polymer Battery



Leave a Message
Product Description

3.7V 500mAh 602045 Lithium Ion Polymer Battery For Mobile Devices


3.7V 500mAh 602045 Rechargeable Lithium Ion Polymer Battery For Mobile Devices


Lithium Ion Polymer Battery Quick details:


1. Diameter*Height : 20mm x 45mm x 6mm (Lithium Ion polymer 602045 size)

2. Nominal Voltage : 3.7V

3. Nominal Capacity : 500mAh

4. Cycle life : 1000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion Polymer rechargeable battery cell 602045

7. CE , UL , UN38.3 , MSDS compliant


Lithium Ion Polymer Battery Description:


A compelling advantage of rechargeable lithium polymer batteries is that manufacturers can shape the shape of the battery almost as they wish, which is important for handset manufacturers to continue to develop smaller, thinner, lighter phones.


BASIC INFO—VOLTAGE: 3.7V; Typical capacity: 500mAh, Weight: approximate 12g; Size: 22.5 x 50 x 6.3mm/0.88"x1.96"x0.25" (WxLxH)

RELIABLE PERFORMANCE—No leaking, excellent cost performance and long cycle life. PCM protection function: over charge, over discharge, over current, short circuit protection.


Rechargeable high volume Lithium-ion Battery
High capability,Lightweight,Low internal resistance
Excellent safety performance,Excellent discharge performance
Long cycle time;Can be used in MP3 MP4 GPS PSP PAD and a variety of electronic readers


LiPo cells provide manufacturers with compelling advantages. They can easily produce batteries of almost any desired shape. For example, the space and weight requirements of mobile devices and notebook computers can be met. They also have a low self-discharge rate, which is about 5% per month.


STORAGE & APPLICATION—Keep the cells in 40%-60% charged state during long period storage. We recommend to charge the battery every 3 months after receipt of the battery and maintain the voltage 3.7-4.0V. Store battery in cool and dry place.//SUITABLE for Bluetooth speaker, dash cam, keyboard and mouse, Wi-Fi enabled smart home systems, PDA and digital cameras, GPS, monitoring units, e-books, tracking devices, sleep management equipment, blood oxygen tracking equipment, pulse monitors.


Safety - Over charge protection, Short circuit protection. When the battery voltage is too high, the charger will stop. It will protect batteries from the damage and the lifetime of batteries will be longer.



Lithium Ion Polymer Battery Specifications:


No items Specification
1 Mode 602045
2 Nominal capacity 500mAh
3 Nominal voltage 3.7V
4 Delivery voltage 3.7-4.2V
5 charge voltage 3.7V
6 Standard charging method 0.5C constant current, 3.7V constant voltage
charge to 3.7V, continue charging till current
decline to ≤0.01C
7 Charge current 0.2C 0.3A Standard charge, charge time: 5h(Ref)
1C 2A Rapid Charge, charge time:1h(Ref)
8 Standard discharging method 0.5C constant current discharge to 3.7V
9 Cell Internal Impedance ≤60mΩ
10 Maximum cont charge current 0.5C For continuous charging mod
11 Max cont discharge current 0.5C Peak instant discharge current 1C



Lithium Ion Polymer Battery Products Details :

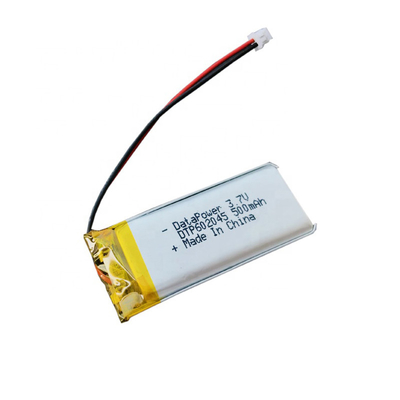

3.7V 500mAh 602045 Lithium Ion Polymer Battery For Mobile Devices 03.7V 500mAh 602045 Lithium Ion Polymer Battery For Mobile Devices 1


Lithium Ion Polymer Battery Applications:


Lithium polymer battery in consumer

Electrical Teethbrush, MP4, Mobile Phone, MID,baby monitor, small flying helicopters, backup power, Portable DVD, POS machine, Desk vidio, E-BIKE, motor, drill and Digital camera.


3.7V 500mAh 602045 Lithium Ion Polymer Battery For Mobile Devices 2
