3.7v 401520 100mAh Lithium Ion Polymer Battery Pack No Memory Effect

Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 3.7v 401520 100mAh
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 15*20*40cm 1000pcs / carton GW: 11kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage 3.7V Model 401520 LiPo Battery
Diameter 15mm X 20mm X 4mm Capacity 100mAh
Cell Type Lithuim Ion Polymer Battery Cycle Life >1000 Cycles
Standard Charge Current Constant Current 0.2C Standard Discharge Current Constant Current 1C
Impedance <50mΩ Certifications CE /UL/UN38.3/ MSDS
High Light

401520 Lithium Ion Polymer Battery


3.7V 100mAh Lithium Ion Polymer Battery


401520 Rechargeable Lithium Polymer Battery Pack

Leave a Message
Product Description

3.7v 401520 100mAh Lithium Ion Polymer Battery Pack No Memory Effect


3.7V 100mAh 401520 Lipo Battery Rechargeable Lithium Polymer ion Battery Pack


Rechargeable Lipo Battery Quick details:


1. Diameter*Height : 15mm x 20mm x 4mm (Lithium Ion polymer 401520 size)

2. Nominal Voltage : 3.7V

3. Nominal Capacity : 100mAh

4. Cycle life : 1000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion Polymer rechargeable battery cell 401520

7. CE , UL , UN38.3 , MSDS compliant


Rechargeable Lithium Polymer Battery Pack Description:


401520 rechargeable lithium ion polymer battery, nominal voltage 3.7V, full charge voltage 4.2V, capacity 100mAh, size (15×20×4mm) (L*W*T), Weight: 0.66oz (15g), Maximum current: 1A. It can prevent overcharge, overdischarge, overcurrent, and short circuit.


A compelling advantage of rechargeable lithium polymer batteries is that manufacturers can shape the shape of the battery almost as they wish, which is important for handset manufacturers to continue to develop smaller, thinner, lighter phones.


1. Nominal Voltage 3.7V, Rated Capacity 100mAh.
2. High energy density
3. High working voltage for single battery cells
4. Pollution-free
5. Long cycle life
6. No memory effect
7. Capacity, resistance, Voltage, platform time consistency is good
8. With short-circuit production function, safe and reliable
9. Good consistency, low self discharge
10. Light weight, small and customized size
11. Wide application for electronics and industry


This battery is really the latest state of the art technology in rechargeable. It is extremely thin, light weight and super thin compared to any rechargeable chemistry.Low weight, small size but huge capacity.The other advantage of the Lithium Polymer technology is the very low self discharge .
Rechargeable high volume Lithium-ion Battery
High capability,Lightweight,Low internal resistance
Excellent safety performance,Excellent discharge performance
Long cycle time;Can be used in MP3 MP4 GPS PSP PAD and a variety of electronic readers


LiPo cells provide manufacturers with compelling advantages. They can easily produce batteries of almost any desired shape. For example, the space and weight requirements of mobile devices and notebook computers can be met. They also have a low self-discharge rate, which is about 5% per month.



Safety - Over charge protection, Short circuit protection. When the battery voltage is too high, the charger will stop. It will protect batteries from the damage and the lifetime of batteries will be longer.



Rechargeable Lipo Battery Specifications:


No items Specification
1 Mode 401520
2 Nominal capacity 100mAh
3 Nominal voltage 3.7V
4 Delivery voltage 3.7-4.2V
5 charge voltage 3.7V
6 Standard charging method 0.5C constant current, 3.7V constant voltage
charge to 3.7V, continue charging till current
decline to ≤0.01C
7 Charge current 0.2C 0.3A Standard charge, charge time: 5h(Ref)
1C 2A Rapid Charge, charge time:1h(Ref)
8 Standard discharging method 0.5C constant current discharge to 3.7V
9 Cell Internal Impedance ≤60mΩ
10 Maximum cont charge current 0.5C For continuous charging mod
11 Max cont discharge current 0.5C Peak instant discharge current 1C



Rechargeable Lipo Battery Products Details :

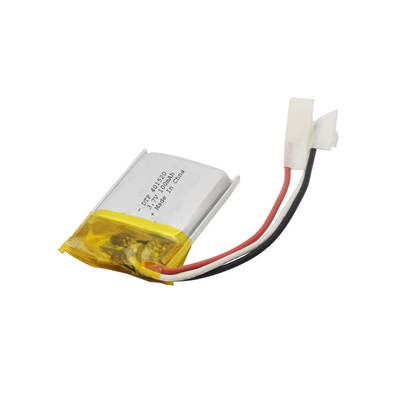

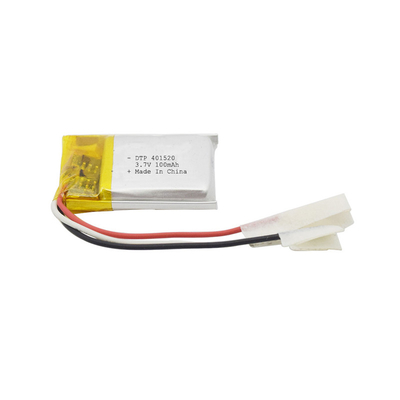

3.7v 401520 100mAh Lithium Ion Polymer Battery Pack No Memory Effect 03.7v 401520 100mAh Lithium Ion Polymer Battery Pack No Memory Effect 1


Rechargeable Lipo Battery Applications:


Lithium polymer battery in consumer

Electrical Teethbrush, MP4, Mobile Phone, MID,baby monitor, small flying helicopters, backup power, Portable DVD, POS machine, Desk vidio, E-BIKE, motor, drill and Digital camera.


3.7v 401520 100mAh Lithium Ion Polymer Battery Pack No Memory Effect 2


3.7v 401520 100mAh Lithium Ion Polymer Battery Pack No Memory Effect 3
