3.2V 202Ah Prismatic Solar Storage Battery Low Power Dissipation

Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number Prismatic Battery
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 207*74*53cm 1pcs / carton GW:4.2kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model 3.2V 202Ah Cell Type Prismatic Lithuim Battery
Diameter 207mmL*74mmH*53mmW Voltage 3.2V
Capacity 202Ah Impedance <0.7mΩ
Standard Charge Current Constant Current 0.5C Standard Discharge Current Constant Current 1C
Cycle Life >5000 Cycles Certifications CE /UL/UN38.3/ MSDS
High Light

UN38.3 LiFePO4 Prismatic Solar Storage Battery

,

3.2V 202Ah Solar Storage Battery

,

3.2V 202Ah Prismatic Cell Lifepo4

Leave a Message
Product Description

3.2V 202Ah Prismatic Solar Storage Battery Low Power Dissipation



3.2V 202Ah LiFePO4 Prismatic Battery lithium ion Battery Cell for Solar Storage



Quick details:



1. Diameter*Height: 207L*74mmH *53mmW

2. Nominal Voltage: 3.2V

3. Nominal Capacity: 207Ah

4. Cycle life:5000 cycles

5. Standard charging ways: CC / CV

6. Li-ion / Lithium Ion rechargeable LiFePO4 battery

7. CE , UL ,UN38.3 , MSDS compliant



Description:



1. High reliability of square lithium battery package;

2. Low power dissipation High energy efficiency of the system;

3. Relatively light weight, high energy density;

4. The structure is simple and the expansion capacity is relatively convenient.It is an important option to improve the energy density by increasing the monomer capacity.

5. If the capacity of the unit is large, the system structure is relatively simple, which makes it possible to monitor the unit one by one.Another benefit of the simplicity of the system is that it is relatively stable.



High Quality:

* 100% pre-tested before leaving the factory,We will matched(capacity,voltage,resistance) all cells before delivery

* Specialized manufacturer with more than 10-years experience

* Excellent customer service and technical support

* Strict quality control system and professional R&D department.

* The QR code is intact, Grade A, Brand new.

* The price come with Bus bars and Bolts,one battery will come with one set bus bar and bolt(e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts) If need more please contact us online.Thank you!



NOTE: For different specifications or concrete parameters such as different brand, capacity, quantity etc., the price will be with a corresponding change. The listed price is just for a reference, because some may no stock in short time or there will be replaced ones alternatively. So, please contact us before purchasing to get an accurate price, quality and after-sale services.Thank you!



Specifications:



Typical Capacity 50Ah-280Ah
Typical Voltage 3.2V
AC Impedance Resistance ≤0.25mΩ-0.7mΩ-
Standard charge and discharge Charge/Discharge Current 0.5C/0.5C
Standard charge and discharge Charge/Discharge Cut-off Voltage 3.65V/2.5V
Continuous Charge/Discharge Current 3C/3C-1C/1C
Pulse Charge/Discharge Ccurrent(30s) 5C/5C-1C/2C
Recommended SOC window 10%~90%
Charging Working Temperature 0℃~55℃ (0℃~60℃)
Discharging Working Temperature -20℃~55℃ (-30℃~60℃)



Products Details :

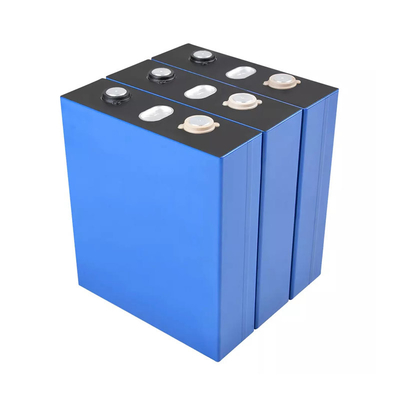

3.2V 202Ah Prismatic Solar Storage Battery Low Power Dissipation 03.2V 202Ah Prismatic Solar Storage Battery Low Power Dissipation 1





Applications:



1. EV, e-scooter, electric golf car, electric vacuum sweeper.
2. Electronic toy, model airplane, remote control.
3. Communication equipment: Cordless telephone, inter-phone.
4. Modality equipment and consumer electronics.
5. Decorative lighting, Solar lamps, torch, emergency light, solar street light and power supply.

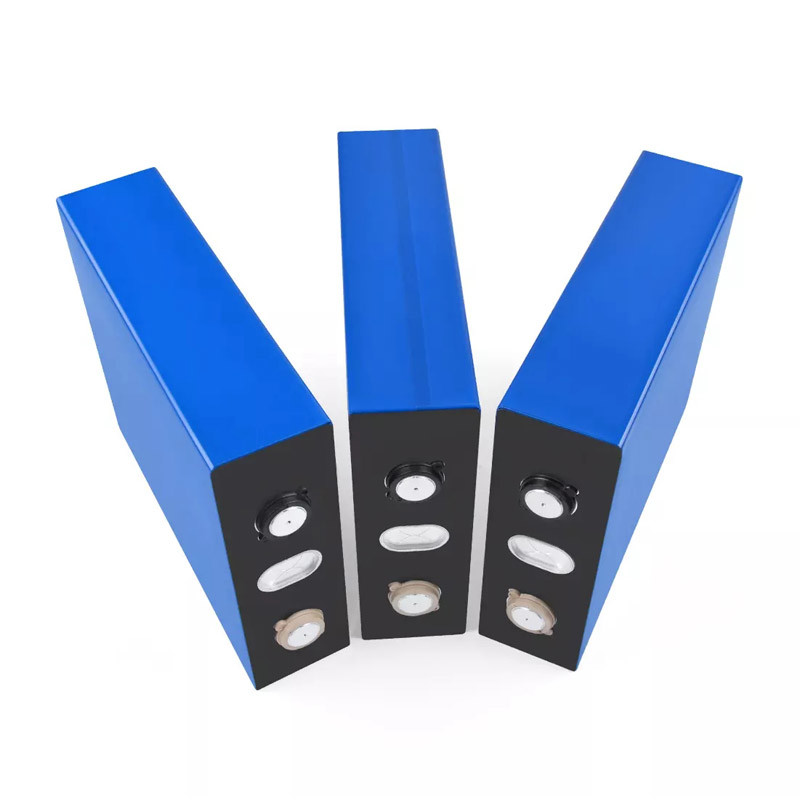

3.2V 202Ah Prismatic Solar Storage Battery Low Power Dissipation 2



3.2V 202Ah Prismatic Solar Storage Battery Low Power Dissipation 3
