12.8V 7Ah 89.6Wh Deep Cycle Lithium Battery Software BMS Control

  • 12.8V 7Ah 89.6Wh Deep Cycle Lithium Battery Software BMS Control
  • 12.8V 7Ah 89.6Wh Deep Cycle Lithium Battery Software BMS Control
  • 12.8V 7Ah 89.6Wh Deep Cycle Lithium Battery Software BMS Control
Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 12.8V 7A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 15*100*7cm 1pcs / carton GW:0.6kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model 12.8V 7A 89.6Wh Cell Type Lithuim Polymer Battery
Diameter 151mmL*94mmH*65mmW Voltage 12.8V
Capacity 7A 89.6Wh Impedance ＜90mΩ
Standard Charge Current Constant Current 0.2C Standard Discharge Current Constant Current 1C
Cycle Life >2000 Cycles Certifications CE /UL/UN38.3/ MSDS
High Light

89.6Wh Deep Cycle Lithium Battery

,

12.8V 7Ah Deep Cycle Lithium Battery

,

12.8V 7Ah Energy Storage Battery
Leave a Message
Product Description

12.8V 7Ah 89.6Wh Deep Cycle Lithium Battery Software BMS Control



Software BMS Control Energy Storage Battery 12.8V 7Ah 89.6Wh Deep Cycle LiFePO4 Battery



Quick details:



1. Diameter*Height: 151L*100mmH *65mmW

2. Nominal Voltage: 12.8V

3. Nominal Capacity: 7A 89.6Wh

4. Cycle life: 2000 cycles

5. Standard charging ways: CC / CV

6. Li-ion / Lithium Ion rechargeable LiFePO4 battery

7. CE , UL ,UN38.3 , MSDS compliant



Description:

Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.



Built-in automatic protection for over-charge, over discharge, overcurrent and over temperature.

Free of maintenance .



Internal cell balancing.



Lighter weight: About 40% ~50% of the weight of a comparablelead acid battery.



Can be charged using most standard lead-acid charges (set).



Wider temperature range:-20℃~60℃.



Support for Series application expansion (up to 51.2V) and two inparallel.



Specifications:



Electrical

Characteristics

 Nominal Voltage 12.8V
Nominal Capacity 7Ah@0.2C
Energy 89.6Wh
Internal Resistance 90≤mΩ
Cycle Life 2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge ≤3.5% per month at 25℃
Standard Charging Max.Charging Voltage 14.0~14.6V
Charging Mode At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, andthen,changed continuously with constant voltage of 14.6V until the current was notmore than 0.02C5A
Charging Current 1.4A
Max.Charging Current 3.5A
Standard Discharging Discharging Current 1.4A
Max. Continuous Current 7A
Max.Pulse Current 20A(<3S)
Discharging Cut-off Voltage 10.0V
Operating Condition Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP55
Structure Cell & Format IFR26650 N35,4S2P
Casing Plastic
Dimension(L*W*H*TH) 151*65*94*100mm
Weight Approx. 1.06Kg
Terminal F2



Products Details :

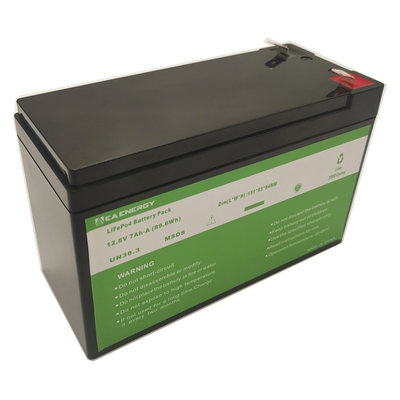

12.8V 7Ah 89.6Wh Deep Cycle Lithium Battery Software BMS Control 0

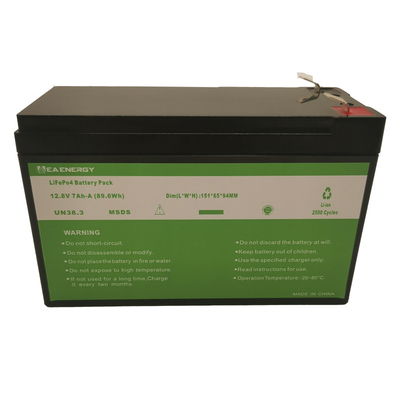

12.8V 7Ah 89.6Wh Deep Cycle Lithium Battery Software BMS Control 1



Applications:



UPS

Solar &Wind Power System

Golf Cart

Electric Vehicle ,E-bike, E-rickshaw etc.

Lighting

12.8V 7Ah 89.6Wh Deep Cycle Lithium Battery Software BMS Control 2





12.8V 7Ah 89.6Wh Deep Cycle Lithium Battery Software BMS Control 3
